CaseIH Farmall 85C

Last Updated: June 2024

Overview

The CaseIH Farmall 85C is a utility tractor with a 4x4 MFWD 4WD chassis, capable of handling a variety of farm duties. It boasts an 84 hp, 4-cylinder turbocharged, intercooled diesel engine from Fiat Powertrain Technologies (FPT), cooled by a liquid system. The engine displacement is 274 ci with a bore of 4.094 inches and stroke of 5.197 inches. The tractor operates on a hydrostatic power steering and offers a 16-speed mechanical shuttle transmission. It features both a ROPS and cab design which vary in height. With the 6503 to 6944 lbs weight range, this tractor is both robust and durable.
Show more...

Key Specifications

Category: Utility

Power Output: 84

Transmission: Mechanical Shuttle / Power Shuttle

Drive Type: 4WD

Operating Weight: 6503 to 6944

Fuel Type: Diesel

Image Gallery

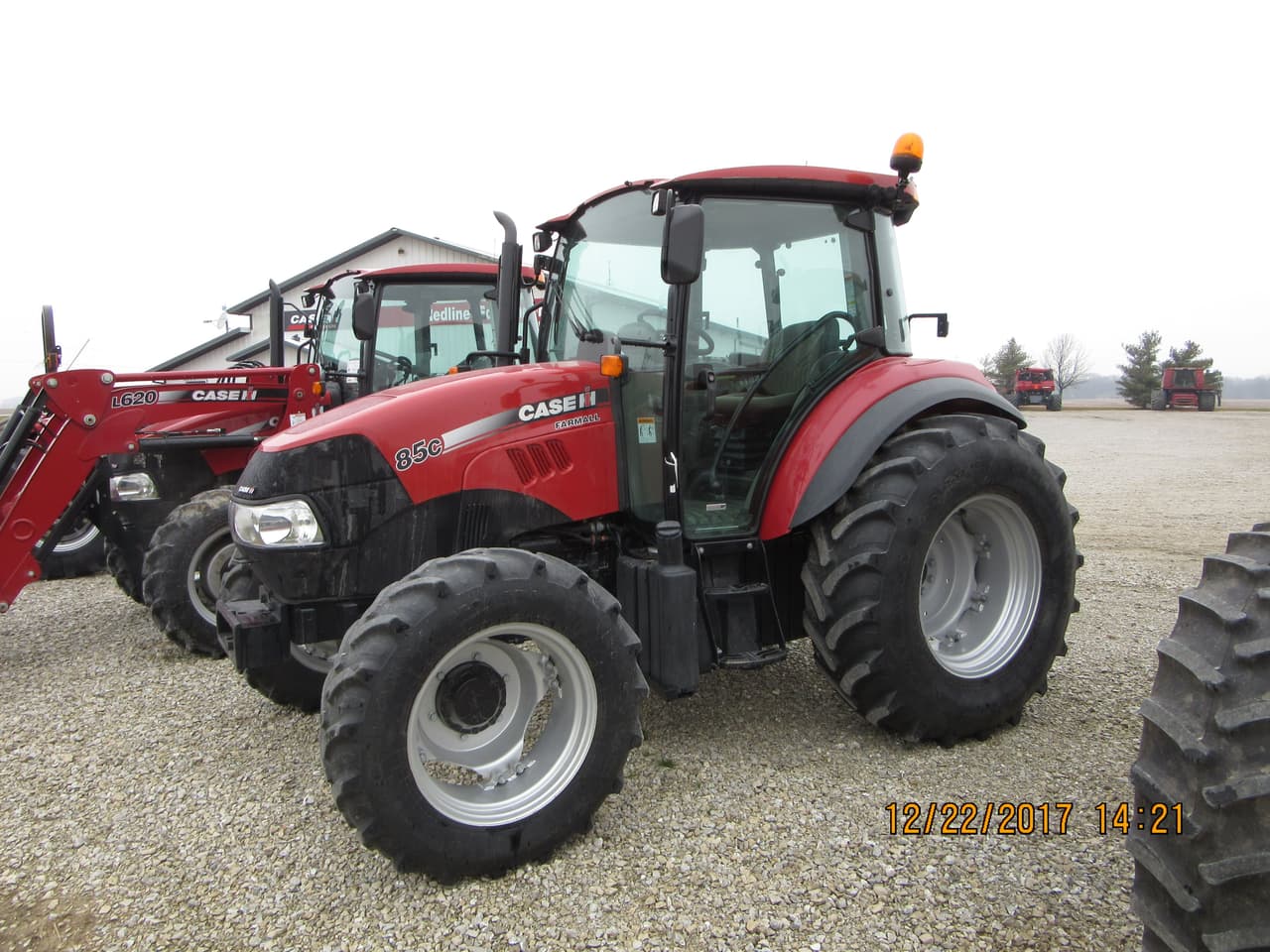

CaseIH Farmall 85C Tractor CaseIH Farmall 85C Tractor CaseIH Farmall 85C Tractor CaseIH Farmall 85C Tractor CaseIH Farmall 85C Tractor CaseIH Farmall 85C Tractor

CaseIH Farmall 85C vs. Similar Tractors

Power Output
Above Average
Greater than 73% of similar tractors.
Operating Weight
Above Average
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat Powertrain Technologies (FPT)
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
274
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2300
Power Output (hp)
84

Transmission

Type
Mechanical Shuttle / Power Shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
77.8 (ROPS) / 91.4 (cab)
Operating Weight (lb)
6503 to 6944

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
11.2
Rear Tire Diameter (in)
-
Rear Tire Width (in)
16.9 (Ag Rear)
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculutral
Manufacture - End Year
-
Hitch Type
Rear
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
