CaseIH Farmall 80

Last Updated: June 2024

Overview

The CaseIH Farmall 80 is a utility tractor known for its performance and versatility. It features a robust 4-cylinder, 72hp, turbocharged and intercooled diesel engine, built by FPT. Its liquid-cooling system and direct injection with mechanical governor ensure optimal performance in various conditions. The Farmall 80 uses a hydrostatic power steering system and has a 12-speed mechanical shuttle transmission. The tractor is two-wheel drive, with a rear category 2 hitch system. The chassis is 4x2 and the total operating weight is 5702 lbs. Additional features include thermostart and a mechanical dry disc clutch.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Mechanical Shuttle

Drive Type: 2WD

Operating Weight: 5702

Fuel Type: Diesel

Image Gallery

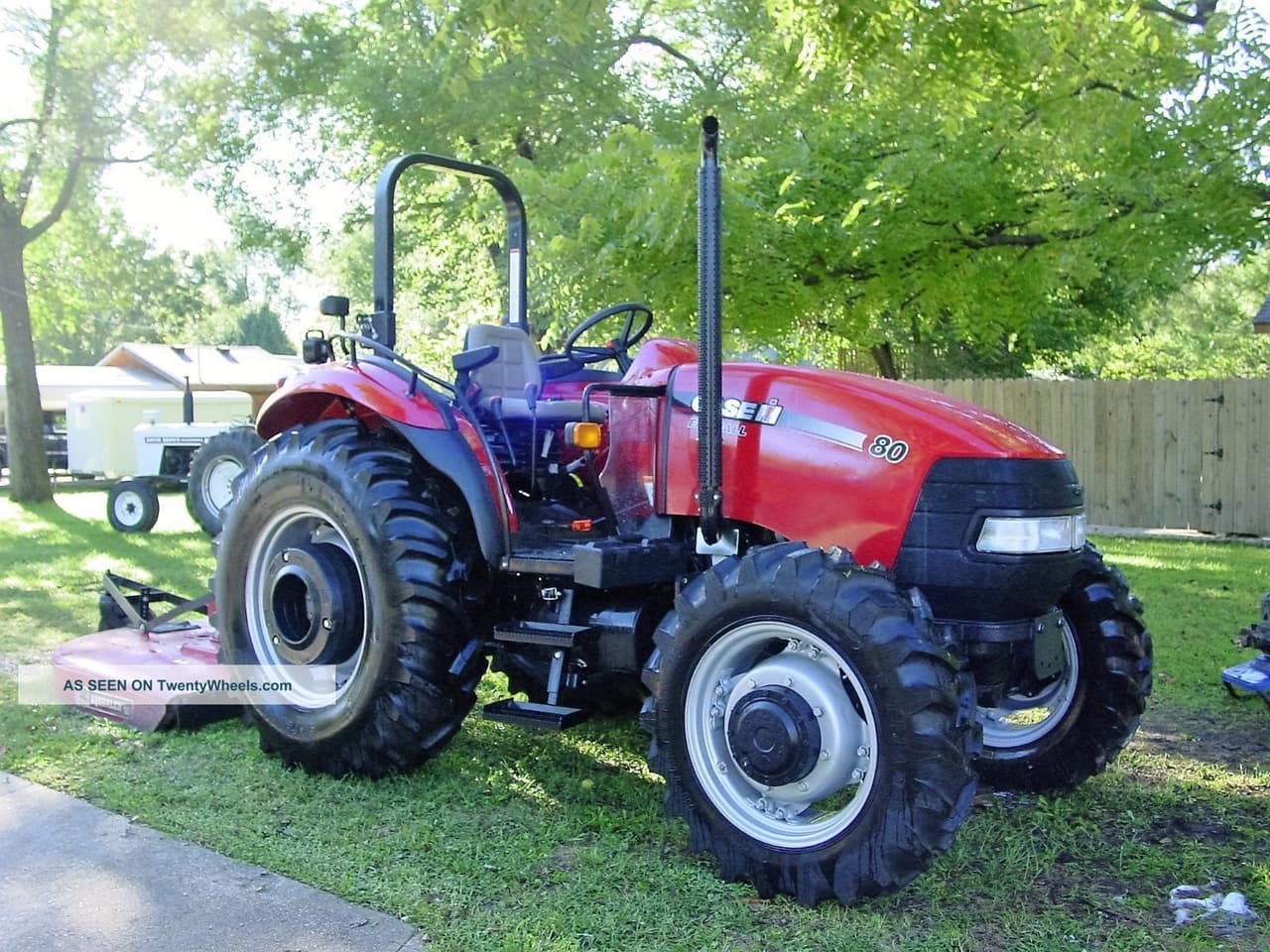

CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor CaseIH Farmall 80 Tractor

CaseIH Farmall 80 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged and Intercooled
Cylinders
4
Displacement (ci)
195
Bore (in)
3.898
Stroke (in)
4.094
Rated RPM
2500
Power Output (hp)
72

Transmission

Type
Mechanical Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
101.1 (ROPS), 103.1 (CAB)
Operating Weight (lb)
5702

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 2
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
