CaseIH Farmall 75C

Last Updated: September 2024

Overview

The CaseIH Farmall 75C is a versatile utility tractor designed for various farm tasks. It features a 2WD drive system and hydrostatic power steering, making it easy to maneuver. The tractor comes with a mechanical shuttle transmission, offering 16 forward and 16 reverse gears for smooth operation in different conditions.

Under the hood, the Farmall 75C boasts a turbocharged intercooled diesel engine made by Fiat Powertrain Technologies (FPT). This 4-cylinder engine has a displacement of 195 ci, which is about average for its class. It delivers 76 hp at 2300 rpm, providing above-average power for a utility tractor. The engine is liquid-cooled and equipped with dual dry element air cleaners for reliable performance. Weighing 5776 lb, this tractor offers a good balance of power and weight for most farm jobs. It also features a Category II/I rear hitch and an open center hydraulic system, making it compatible with a wide range of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 76 hp (56.7 kW)

Transmission: Mechanical Shuttle

Drive Type: 2WD

Operating Weight: 5776 lb (2620 kg)

Fuel Type: Diesel

Image Gallery

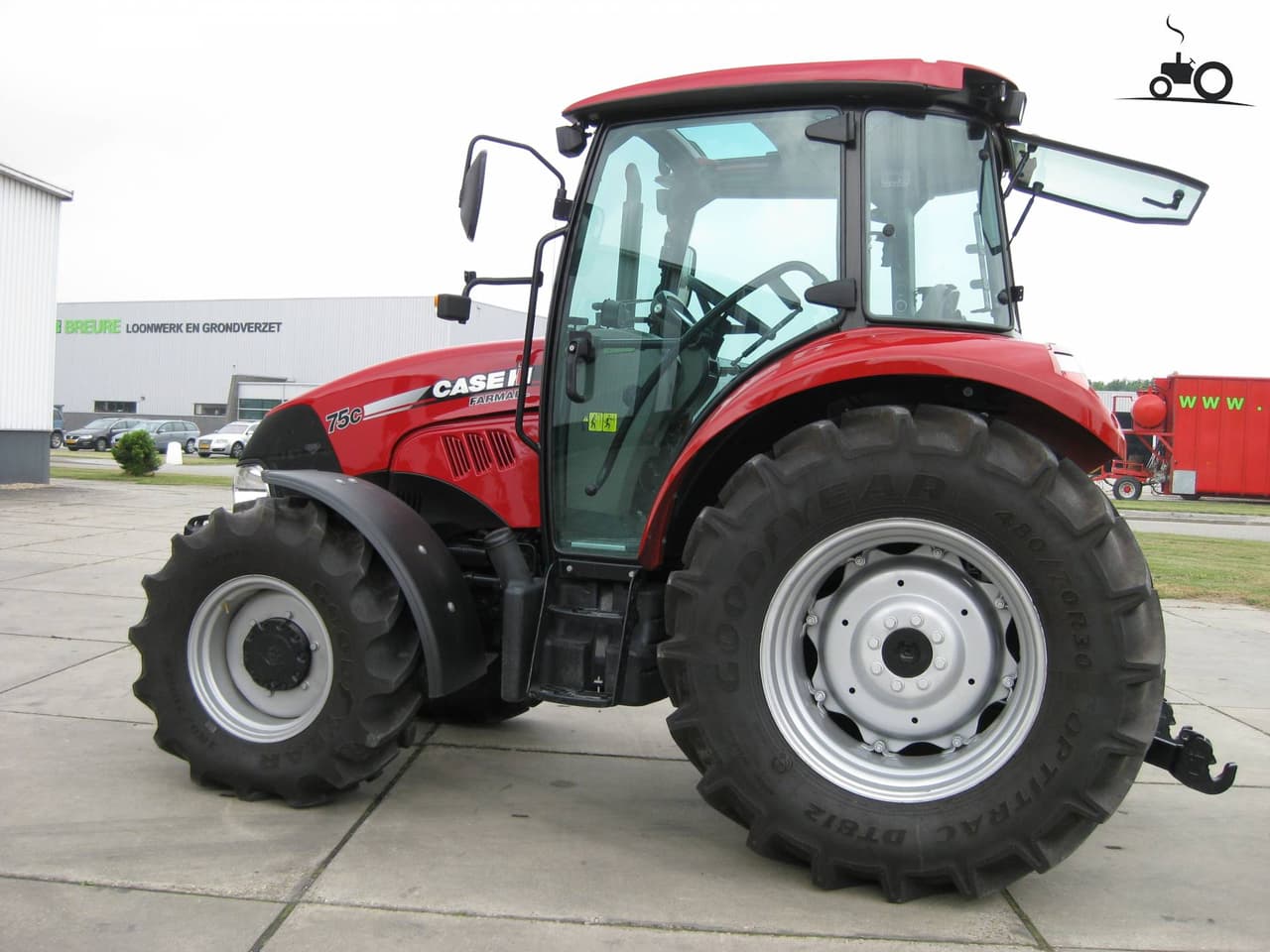

CaseIH Farmall 75C Tractor CaseIH Farmall 75C Tractor CaseIH Farmall 75C Tractor CaseIH Farmall 75C Tractor

CaseIH Farmall 75C vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 75C is Above Average. It is greater than 70% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 2.4K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 75C is Average. It is greater than 59% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 2.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 75C is Average. It is greater than 57% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 75C is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Fiat Powertrain Technologies (FPT)
Model
Turbocharged Intercooled Diesel
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement
195 ci (3.2 L)
Bore
3.90 in (99.0 mm)
Stroke
4.09 in (104.0 mm)
Rated RPM
2300
Power Output
76 hp (56.7 kW)

Transmission

Type
Mechanical Shuttle
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
