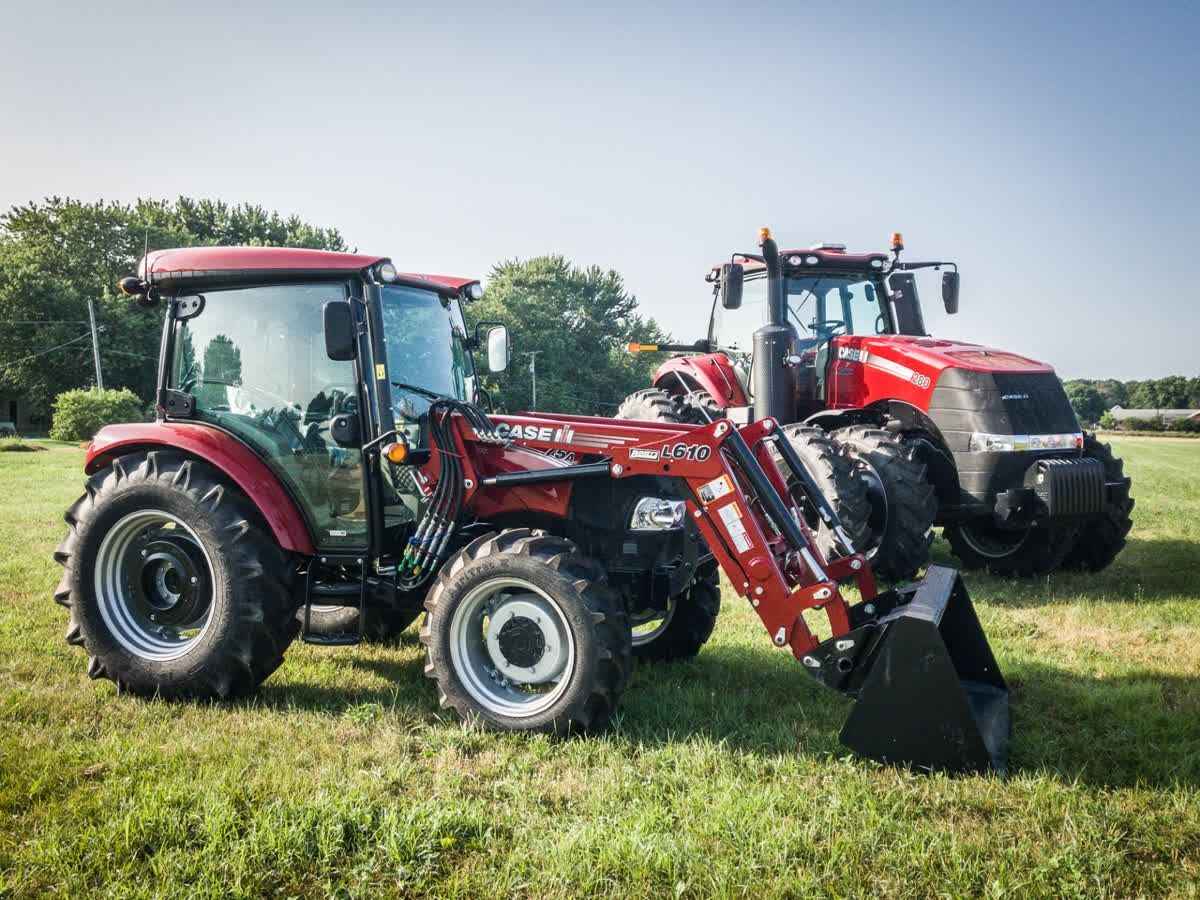

CaseIH Farmall 75A

Last Updated: September 2024

Overview

The CaseIH Farmall 75A is a utility tractor designed for various farm tasks. It features a 2WD drive system and hydrostatic power steering, making it easy to maneuver. The tractor comes with an 8-speed partially synchronized transmission, giving farmers good control over their speed and power.

Under the hood, the Farmall 75A boasts a FPT engine with 4 cylinders. This diesel engine is turbocharged and aftercooled, providing 74 hp at 2500 rpm. The engine displacement is 195 ci, which is about average for tractors in its class. It has a liquid cooling system with an 8.5 qts coolant capacity. The tractor is equipped with ag tires both front and rear, and it has a width of 78.4 inches. For attaching implements, it features a Category II/I rear hitch and an open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 74 hp (55.2 kW)

Transmission: 8-speed partially synchronized

Drive Type: 2WD

Fuel Type: Diesel

CaseIH Farmall 75A vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 75A is Average. It is greater than 68% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 75A is Average. It is greater than 56% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 75A is Average. It is greater than 61% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
FPT
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement
195 ci (3.2 L)
Bore
4.09 in (103.9 mm)
Stroke
4.53 in (115.1 mm)
Rated RPM
2500
Power Output
74 hp (55.2 kW)

Transmission

Type
8-speed partially synchronized

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
