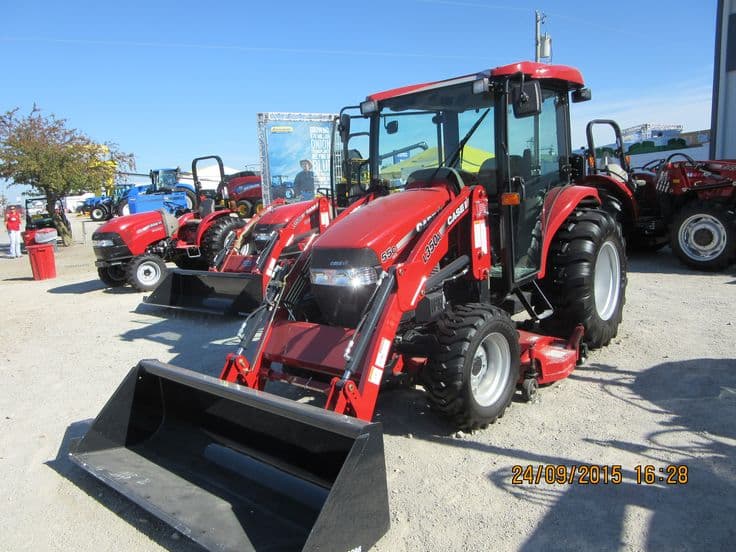

CaseIH Farmall 55C CVT

Last Updated: September 2024

Overview

The CaseIH Farmall 55C CVT is a versatile utility tractor built for various farm tasks. It has a powerful 54 hp engine made by FPT, which is average for its class. The engine has three cylinders and uses diesel fuel. It's turbocharged and liquid-cooled, which helps it run smoothly and efficiently.

This tractor is designed with farmers in mind. It has four-wheel drive and power steering, making it easy to handle in different conditions. The Farmall 55C CVT is compact, measuring 122 inches long, 68.3 inches wide, and 97.4 inches tall. It weighs 4,190 pounds, which is about average for similar tractors. The tractor has a rear hitch for attaching tools and an open center hydraulic system. It also meets Tier IV emissions standards, showing it's eco-friendly.
Show more...

Key Specifications

Category: Utility

Power Output: 54 hp (40.3 kW)

Drive Type: 4WD

Operating Weight: 4190 lb (1901 kg)

Fuel Type: Diesel

CaseIH Farmall 55C CVT vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 55C CVT is Average. It is greater than 52% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 55C CVT is Average. It is greater than 43% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 55C CVT is Average. It is greater than 38% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 55C CVT is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
FPT
Model
R7531E4
Cooling Type
Liquid-Cooled
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
3
Displacement
136 ci (2.2 L)
Bore
3.70 in (94.0 mm)
Stroke
4.21 in (106.9 mm)
Rated RPM
2600
Power Output
54 hp (40.3 kW)

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
