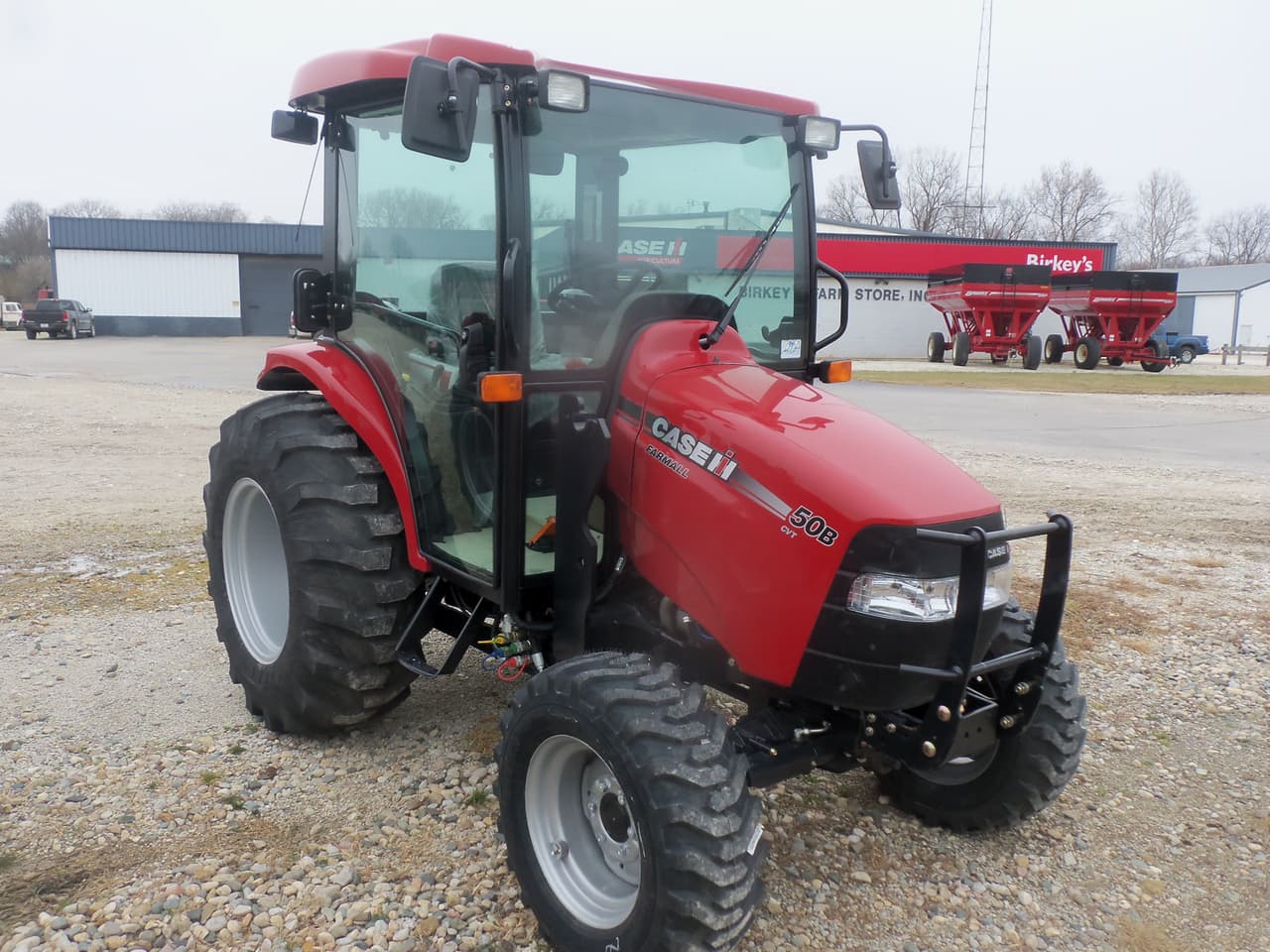

CaseIH Farmall 50

Last Updated: June 2024

Overview

This is a compact utility tractor produced by CaseIH, featuring a model named Farmall 50. Its engine is a 4-cylinder diesel N844L model from Shibaura, which is liquid-cooled and boasts a power output of 50 horsepower. The tractor features an impressive 4x4 MFWD 4WD chassis, along with hydrostatic power steering. The Farmall 50 uses a 12-speed Synchro Shuttle, with an alternative Continuously Variable Transmission type. Notably, this model offers robust dimensions: a length of 125.2 inches, a width of 66.6 inches, and a height of 90.79 inches with the cab installed (or 95 inches with the ROPS). It also operates at an operating weight of 3522 pounds.
Show more...

Key Specifications

Category: Utility

Power Output: 50

Transmission: Synchro Shuttle / CVT (Continuously Variable Transmission)

Drive Type: 4WD

Operating Weight: 3522

Fuel Type: Diesel

Image Gallery

CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor CaseIH Farmall 50 Tractor

CaseIH Farmall 50 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Operating Weight
Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.307
Stroke (in)
3.937
Rated RPM
2800
Power Output (hp)
50

Transmission

Type
Synchro Shuttle / CVT (Continuously Variable Transmission)
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
125.2
Width (in)
66.6
Height (in)
90.79 (with cab), 95 (with ROPS)
Operating Weight (lb)
3522

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
-
