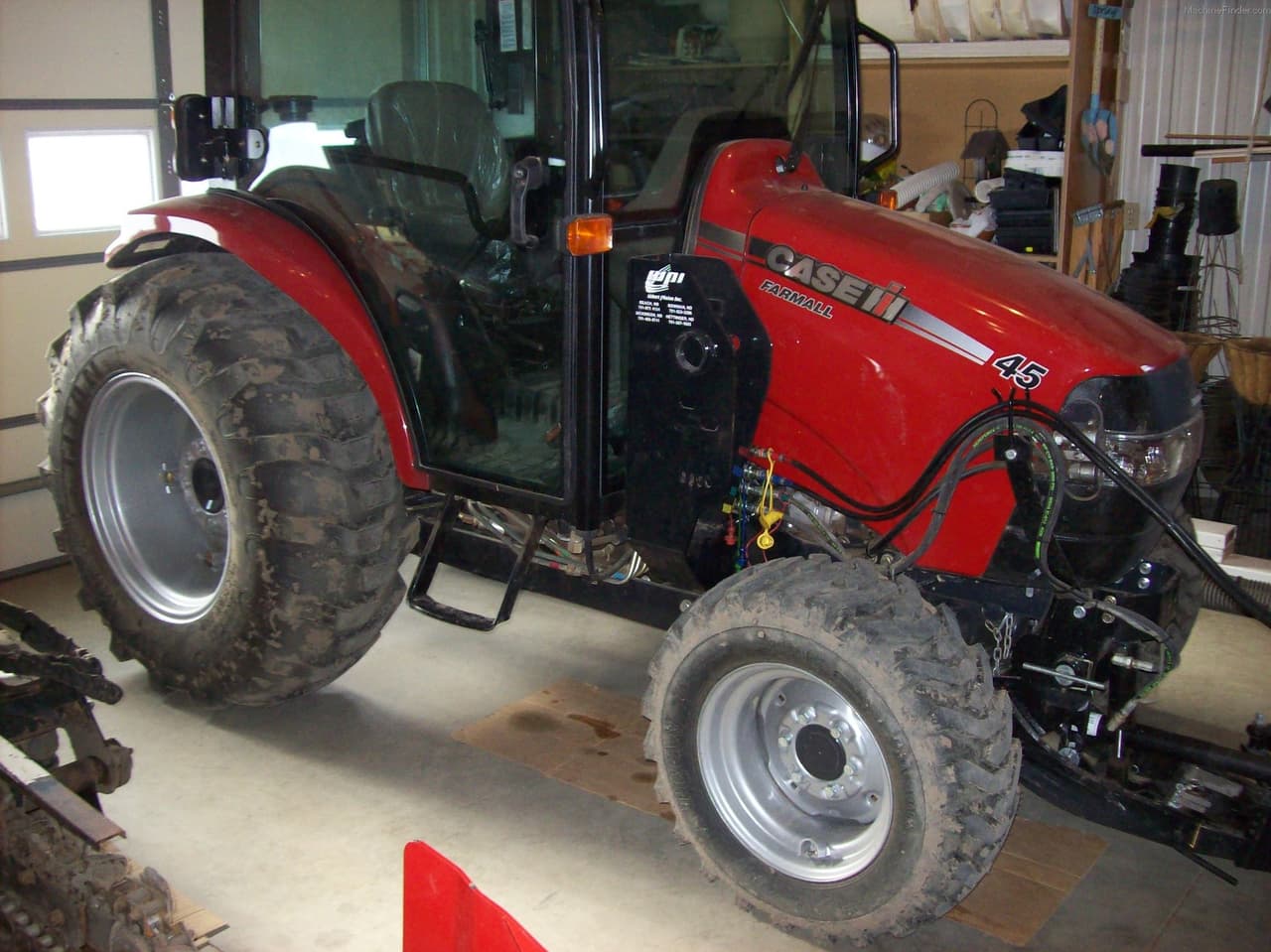

CaseIH Farmall 45

Last Updated: June 2024

Overview

The CaseIH Farmall 45 is a compact utility tractor that is built to handle a range of tasks with power and reliability. It has a 4x4 MFWD 4WD chassis, and utilizes hydrostatic power steering for smooth and easy control. The Shibaura N844L engine is a 4-cylinder, diesel, liquid-cooled system capable of a power output of 45 horsepower. The tractor is characterized by its versatility, with transmission types including Synchro Shuttle, Hydrostatic, and CVT, providing infinite gears for forward and reverse. Incorporated into the system is an open center hydraulic system. Additional features include a dual stage air cleaner and glow plugs for pre-heating.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Synchro Shuttle, Hydrostatic, CVT

Drive Type: 4WD

Operating Weight: 3454 to 4491

Fuel Type: Diesel

Image Gallery

CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor CaseIH Farmall 45 Tractor

CaseIH Farmall 45 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.307
Stroke (in)
3.937
Rated RPM
2600
Power Output (hp)
45

Transmission

Type
Synchro Shuttle, Hydrostatic, CVT
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
125.2
Width (in)
66.6
Height (in)
95 (ROPS), 90.79 (Cab)
Operating Weight (lb)
3454 to 4491

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open Center
