CaseIH Farmall 25SC

Last Updated: June 2024

Overview

The CaseIH Farmall 25SC is a durable and efficient tractor, powered by a 3-cylinder Yanmar diesel engine with a power output of 24.7 horsepower and a rated RPM of 3000. It uses a hydrostatic transmission, and it features a type I rear hitch. The engine has a liquid cooling system and comes with an electric starter. The tractor's length is 97 inches and it comes with either ROPS or Cab where the height measures 87.4 inches with the ROPS, 62.4 inches for the folded ROPS, and 92.3 inches with the cab.

Key Specifications

Power Output: 24.7

Transmission: Hydrostatic

Operating Weight: 1884 (with Cab), 1444 (with ROPS)

Fuel Type: Diesel

Image Gallery

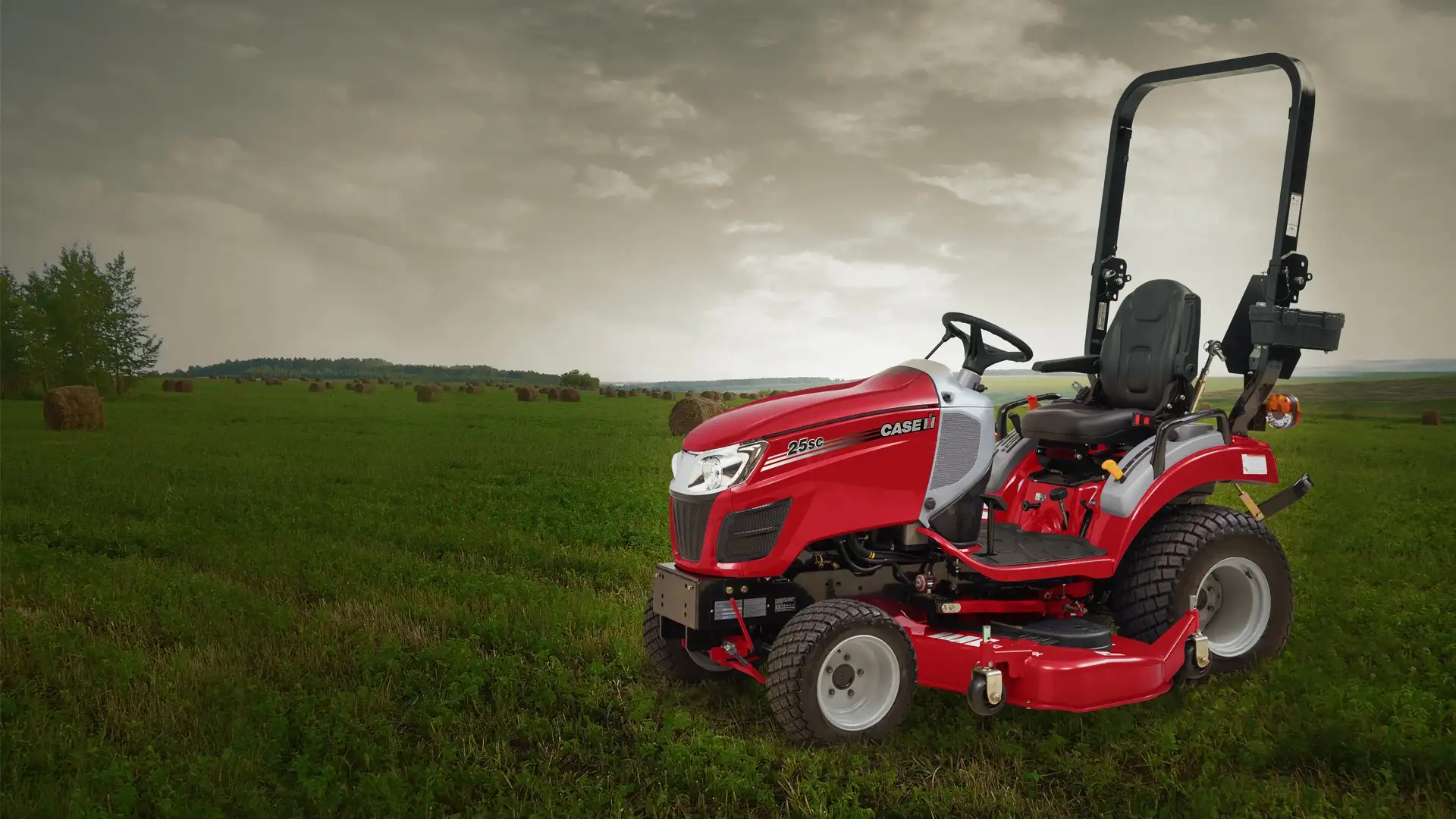

CaseIH Farmall 25SC Tractor

Technical Specifications

Engine

Manufacturer: Yanmar
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 77.2
Bore (in): 3.15
Stroke (in): 3.3
Rated RPM: 3000
Power Output (hp): 24.7

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 97
Width (in): -
Height (in): 92.3 (with Cab), 87.4 (with ROPS), 62.4 (Folded ROPS)
Operating Weight (lb): 1884 (with Cab), 1444 (with ROPS)

Power Take-Off (PTO)

PTO Type: 540 (1.375), Mid PTO 2500
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab, ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
