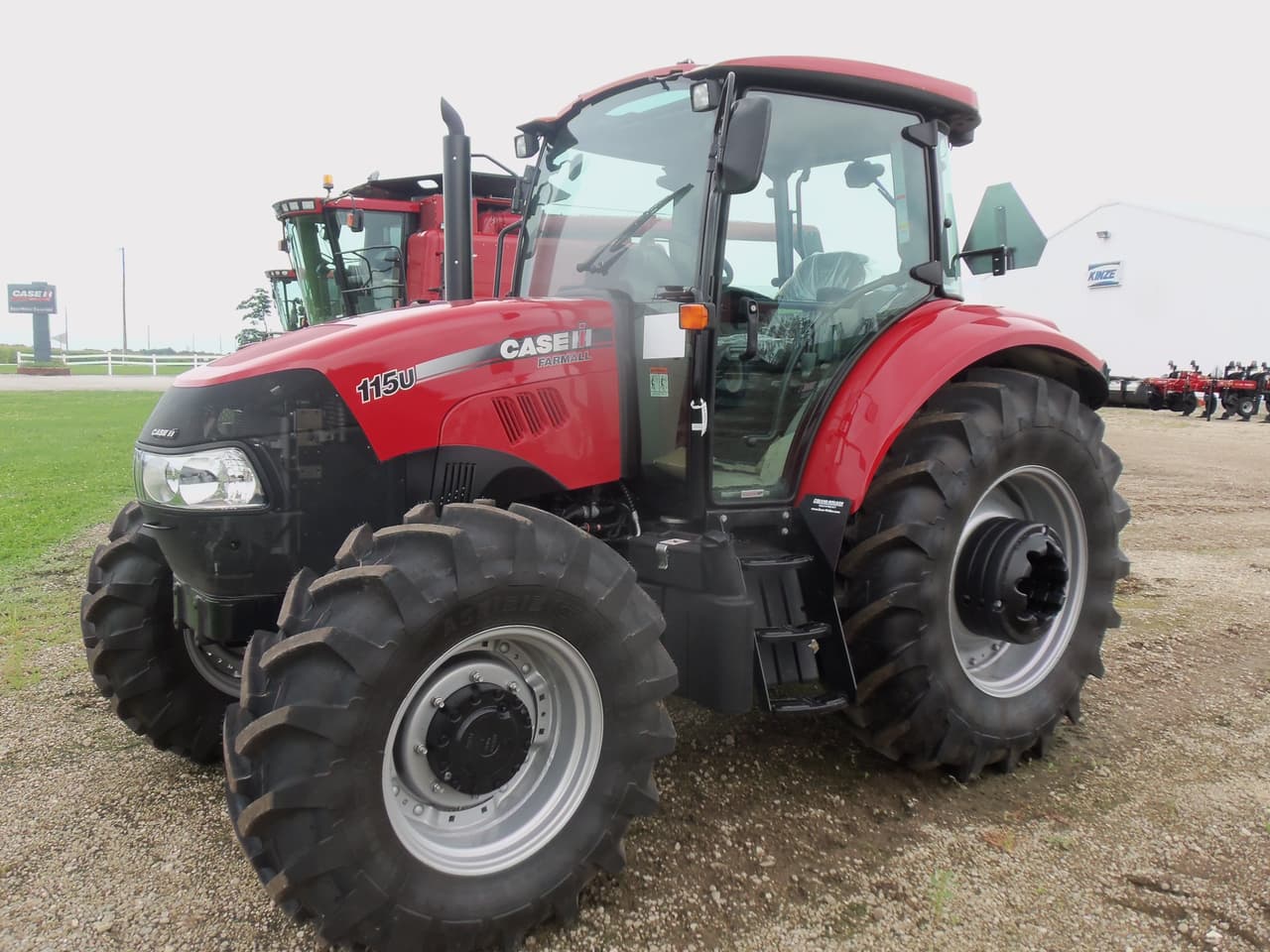

CaseIH Farmall 115U

Last Updated: June 2024

Overview

The CaseIH Farmall 115U is a powerful and reliable tractor geared towards high productivity. It's powered by an FPT manufactured 4-cylinder turbocharged intercooled engine with high-pressure common rail fuel system that delivers a high gross horsepower of 115 hp. The engine is liquid-cooled and operates at a rated RPM of 2300. The CaseIH Farmall 115U has three different transmission types including power shuttle, creeper power shuttle, and a two-speed power shift, offering a variety of gears for different tasks. Its PTO type is 540/1000 and it employs a hydraulic wet disc for braking mechanism. The tractor comes with a cab operator station type.
Show more...

Key Specifications

Power Output: 115

Transmission: Power Shuttle / Creeper Power Shuttle / Two-Speed Power Shift

Operating Weight: 9370

Fuel Type: Diesel

Image Gallery

CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor CaseIH Farmall 115U Tractor

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
207.5
Bore (in)
3.898
Stroke (in)
4.331
Rated RPM
2300
Power Output (hp)
115

Transmission

Type
Power Shuttle / Creeper Power Shuttle / Two-Speed Power Shift
Forward Gears
12/20/2024
Reverse Gears
12/20/2024
Total Gears
-

Dimensions

Length (in)
164
Width (in)
83
Height (in)
103
Operating Weight (lb)
9370

Power Take-Off (PTO)

PTO Type
540/1000
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Open Center
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Hydraulic Wet Disc
Hydraulic System Type
-
