CaseIH Farmall 110U

Last Updated: June 2024

Overview

The Farmall 110U by CaseIH is a utility tractor designed for durability and power. It features a 4x4 MFWD 4WD chassis and is powered by a turbocharged, after-cooled diesel engine produced by FPT. The tractor operates with a 16-speed power shift transmission with a total of 32 forward and reverse gears when factoring the creeper capability. The engine is an electronic high-pressure common rail direct injection system, offering an impressive 107 hp of power output. With its robust weight of 10031 lbs and power steering, the Farmall 110U offers reliability and control in a versatile package.
Show more...

Key Specifications

Category: Utility

Power Output: 107

Transmission: 4-speed power shift

Drive Type: 4WD

Operating Weight: 10031

Fuel Type: Diesel

Image Gallery

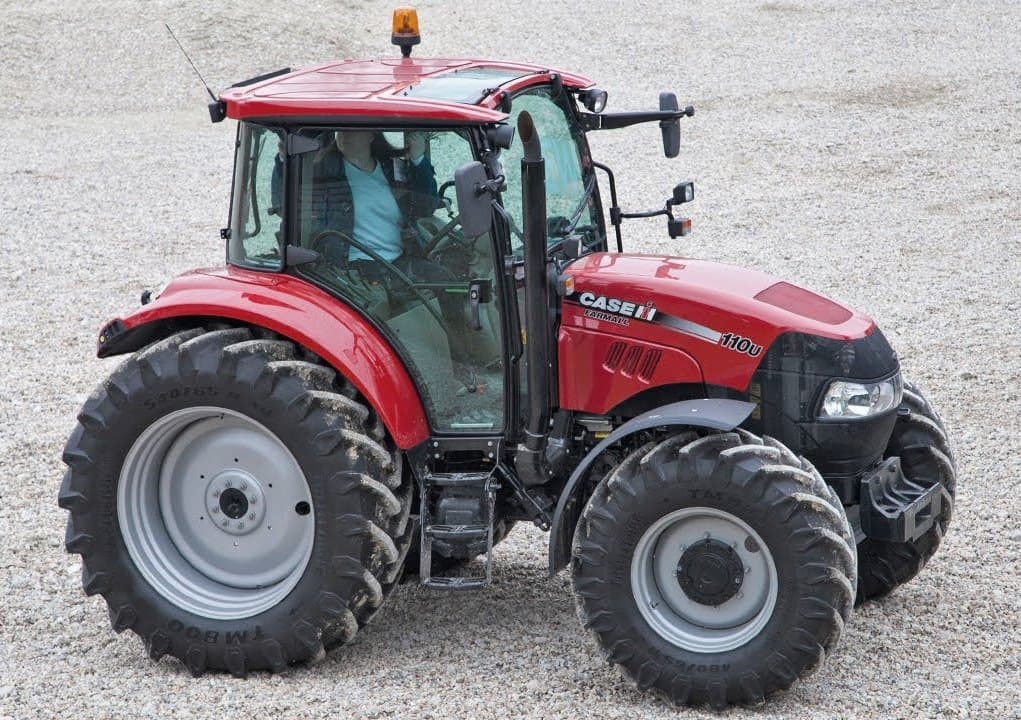

CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor CaseIH Farmall 110U Tractor

CaseIH Farmall 110U vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Aftercooled
Cylinders
4
Displacement (ci)
207
Bore (in)
3.9
Stroke (in)
4.33
Rated RPM
2300
Power Output (hp)
107

Transmission

Type
4-speed power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
165
Width (in)
88.5
Height (in)
107 (Cab)
Operating Weight (lb)
10031

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
14.9
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
