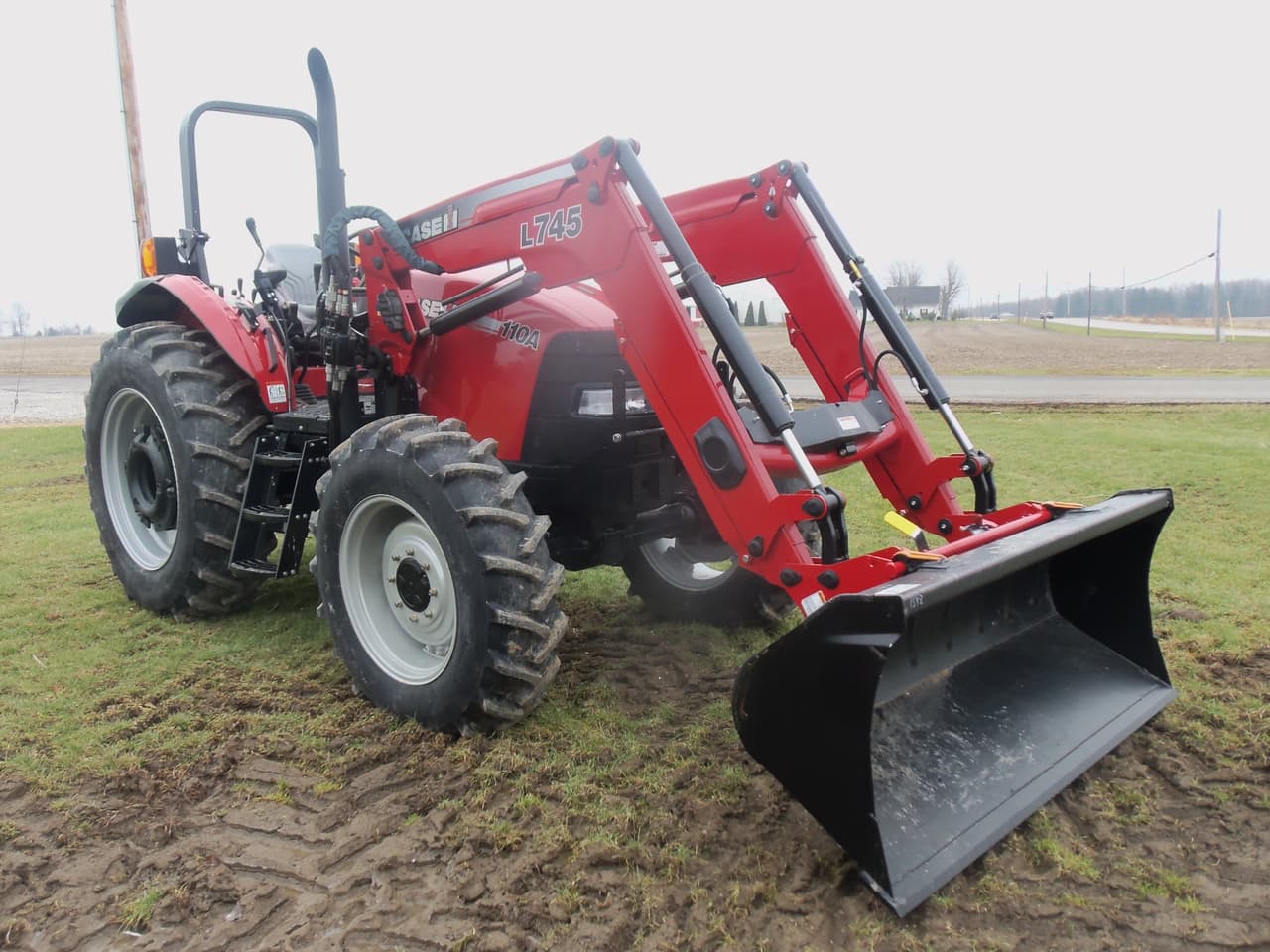

CaseIH Farmall 110A

Last Updated: June 2024

Overview

The CaseIH Farmall 110A is a utility tractor with an FPT turbocharged diesel engine, featuring 4 cylinders and 8 valves. It also has a power output of 110 hp and a rated RPM of 2200. The tractor is equipped with a power shuttle transmission and features a 4x2 2WD chassis. It has a steering type of power and a hydraulic system type of open center. The operating weight ranges from 8003 to 9348 lbs. The engine has a displacement of 273.7 cubic inches with a bore of 4.094 inches and a stroke of 5.197 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Transmission: Power Shuttle

Drive Type: 2WD

Operating Weight: 8003 to 9348

Fuel Type: Diesel

Image Gallery

CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor CaseIH Farmall 110A Tractor

CaseIH Farmall 110A vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
273.7
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
110

Transmission

Type
Power Shuttle
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
8003 to 9348

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
