CaseIH Farmall 105U

Last Updated: June 2024

Overview

The CaseIH Farmall 105U is a robust tractor model driven by a turbocharged intercooled diesel engine manufactured by FPT. It possesses a liquid-cooled engine system, which enables a maximum engine power output of 105 horsepower at a rated RPM of 2300. Equipped with a variety of transmission types such as Mechanical Shuttle, Mechanical Shuttle with Creeper, Power Shuttle, and Power Shuttle with Partial Power Shift, it offers 24 forward and 12 reverse gears. Hydraulic steering adds to the tractor's performance, making it easy to maneuver. It stands tall with a height of 100.8 inches in its cab version and offers a generous operating weight capacity of 7936 pounds, making it a reliable machine for heavy duty tasks.

Key Specifications

Power Output: 105

Transmission: Mechanical Shuttle; Mechanical Shuttle with Creeper; Power Shuttle; Power Shuttle with Partial Power Shift

Drive Type: 2WD

Operating Weight: 7936

Fuel Type: Diesel

Image Gallery

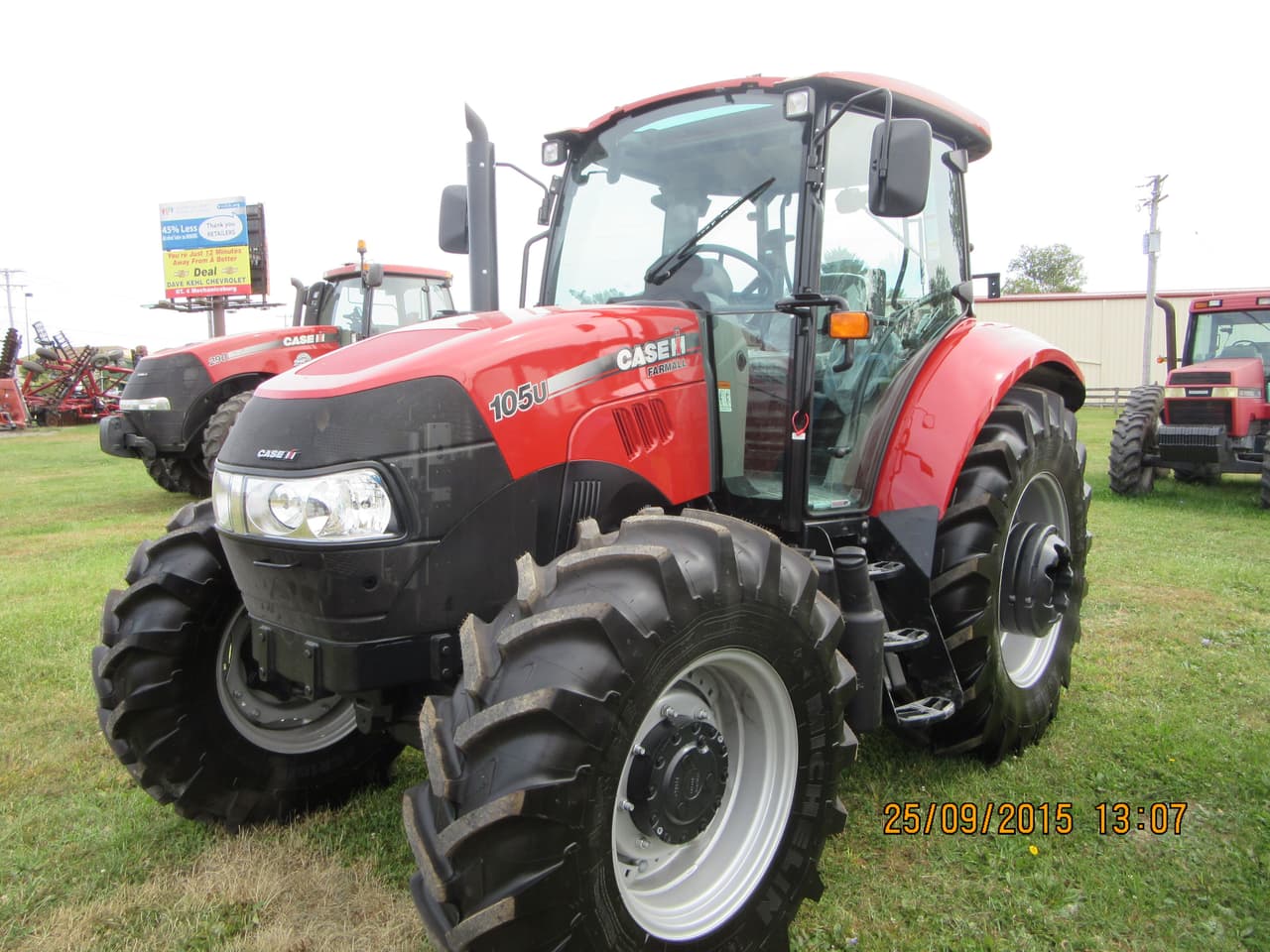

CaseIH Farmall 105U Tractor

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 4
Displacement (ci): 274
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2300
Power Output (hp): 105

Transmission

Type: Mechanical Shuttle; Mechanical Shuttle with Creeper; Power Shuttle; Power Shuttle with Partial Power Shift
Forward Gears: 24
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 100.8
Operating Weight (lb): 7936

Power Take-Off (PTO)

PTO Type: 540/1000
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 2WD
Drive Type: 2WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 2
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS; Cab
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open Center
