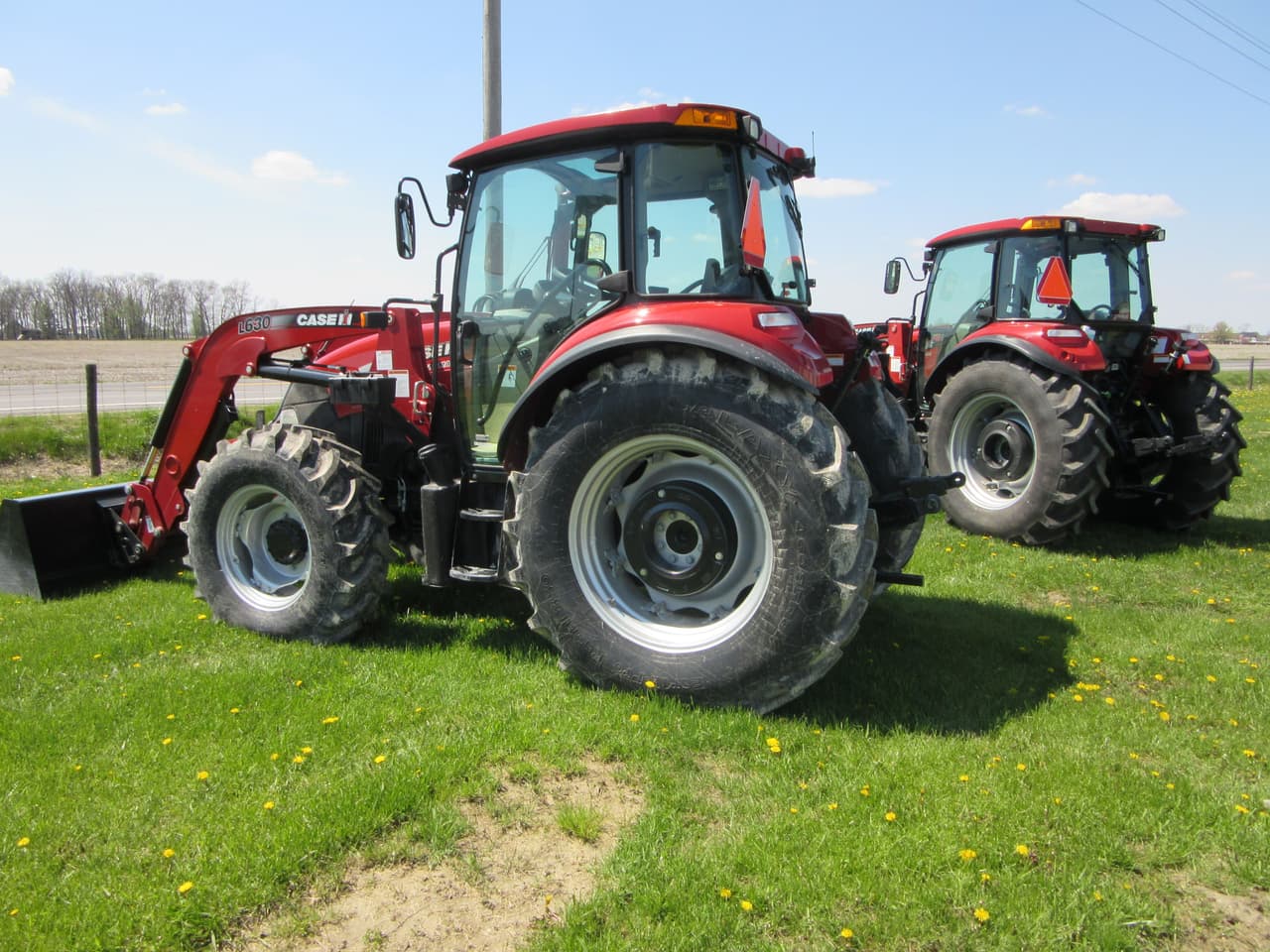

CaseIH Farmall 105N

Last Updated: September 2024

Overview

The CaseIH Farmall 105N is a powerful orchard and vineyard tractor designed for agricultural work. It features a 4-wheel drive system and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a 16-speed mechanical shuttle transmission, offering plenty of options for different tasks.

Under the hood, the Farmall 105N boasts a robust FPT engine with four cylinders and a very high displacement of 274 ci. This turbocharged diesel engine delivers an impressive 106 hp at 2300 rpm, placing it among the most powerful in its class. The tractor's operating weight of 5820 lb is above average, providing excellent stability during operation. With its compact size (53.4 inches wide and 90.7 inches tall) and agricultural tires, this tractor is well-suited for work in orchards and vineyards. It also features a rear-mounted Category II hitch and an open center hydraulic system, making it versatile for various attachments and implements.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 106 hp (79.0 kW)

Transmission: Mechanical Shuttle

Drive Type: 4WD

Operating Weight: 5820 lb (2640 kg)

Fuel Type: Diesel

CaseIH Farmall 105N vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 105N is Above Average. It is greater than 80% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 105N is Average. It is greater than 59% of similar Orchard/Vineyard tractors in our database.

Operating weight distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 105N is Above Average. It is greater than 73% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 105N is Average. It is greater than 65% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
FPT
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
274 ci (4.5 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.1 mm)
Rated RPM
2300
Power Output
106 hp (79.0 kW)

Transmission

Type
Mechanical Shuttle
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
