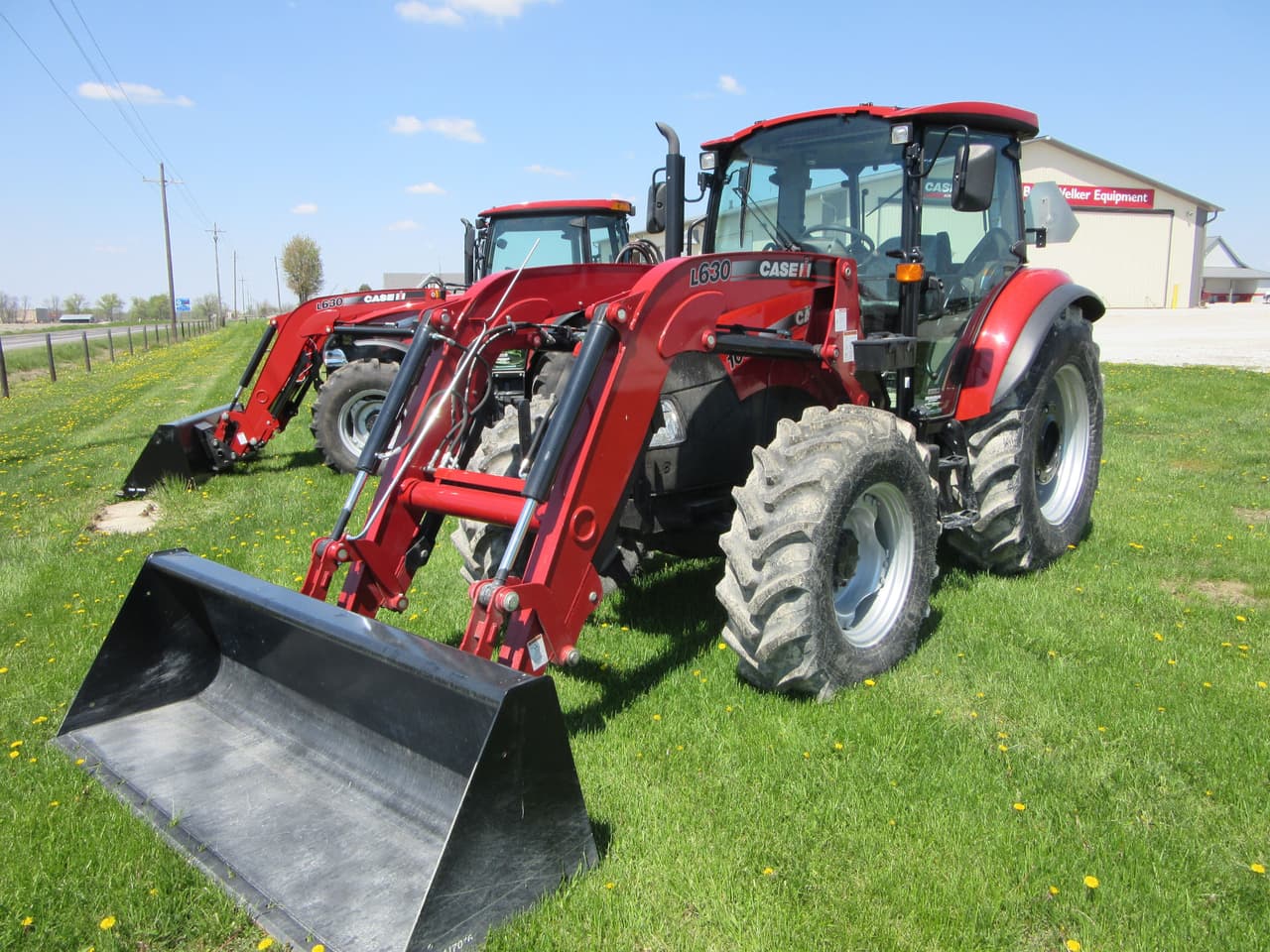

CaseIH Farmall 105C

Last Updated: June 2024

Overview

The CaseIH Farmall 105C is a utility tractor designed with power and efficiency in mind. With a formidable 106 horsepower, a 4-cylinder turbocharged air-to-air aftercooled diesel engine, the machine is equipped to handle demanding tasks. The Fiat Powertrain Technologies (FPT) F5H engine, paired with a 12-speed mechanical shuttle, provides a fine balance between performance and fuel efficiency. Its compact dimensions give the operator easy maneuverability in tight spaces while offering high ground clearance for various types of terrains. The cabin has been designed with ergonomics in mind, ensuring the operator great visibility and comfort throughout the long working day.
Show more...

Key Specifications

Category: Utility

Power Output: 106

Transmission: Mechanical Shuttle

Drive Type: 2WD

Operating Weight: 7937

Fuel Type: Diesel

Image Gallery

CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor CaseIH Farmall 105C Tractor

CaseIH Farmall 105C vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat Powertrain Technologies (FPT)
Model
F5H
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged air-to-air aftercooled
Cylinders
4
Displacement (ci)
207
Bore (in)
3.9
Stroke (in)
4.33
Rated RPM
2300
Power Output (hp)
106

Transmission

Type
Mechanical Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
149
Width (in)
83
Height (in)
103 (ROPS), 100 (cab)
Operating Weight (lb)
7937

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
16.9
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
