CaseIH DX25E

Last Updated: June 2024

Overview

The CaseIH Farmall DX25E is a sub-compact utility tractor from the DXE series, manufactured between 2005 and 2007. This 4WD tractor is equipped with a three-cylinder Shibaura S773 diesel engine, delivering a power output of 25 HP at 3,000 rpm. It operates with an hydrostatic transmission that has an infinite number of forward and reverse gear ranges, and allows smooth control over speed and direction. The tractor's operation is further assisted with features like power steering, wet disc brakes, and a Two-post ROPS for safety. Its tires are of the industrial type, and the tractor has a category I hitch with a lift capacity of 699 lbs.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 25

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1318

Fuel Type: Diesel

Image Gallery

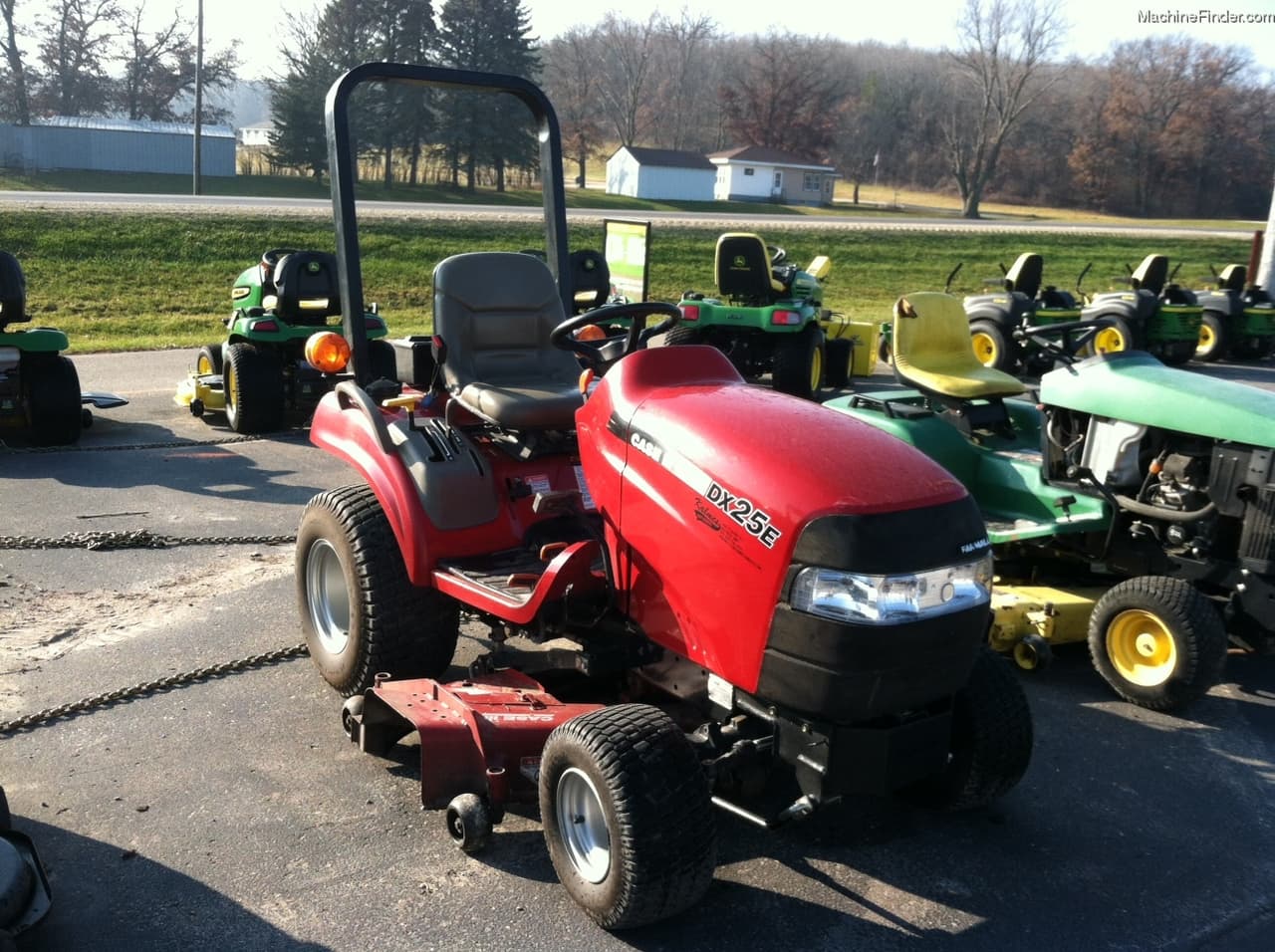

CaseIH DX25E Tractor

CaseIH DX25E vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Hitch Capacity

Below Average

Greater than 16% of similar tractors.

Operating Weight

Poor

Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: S773
Cooling Type: Liquid
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 61.3
Bore (in): 3.03
Stroke (in): 2.83
Rated RPM: 3000
Power Output (hp): 25

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 96.1
Width (in): 45.7
Height (in): 89.8
Operating Weight (lb): 1318

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Industrial
Manufacture - End Year: 2007
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 699 lbs
Operator Station Type: Two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open Center
