CaseIH D45

Last Updated: June 2024

Overview

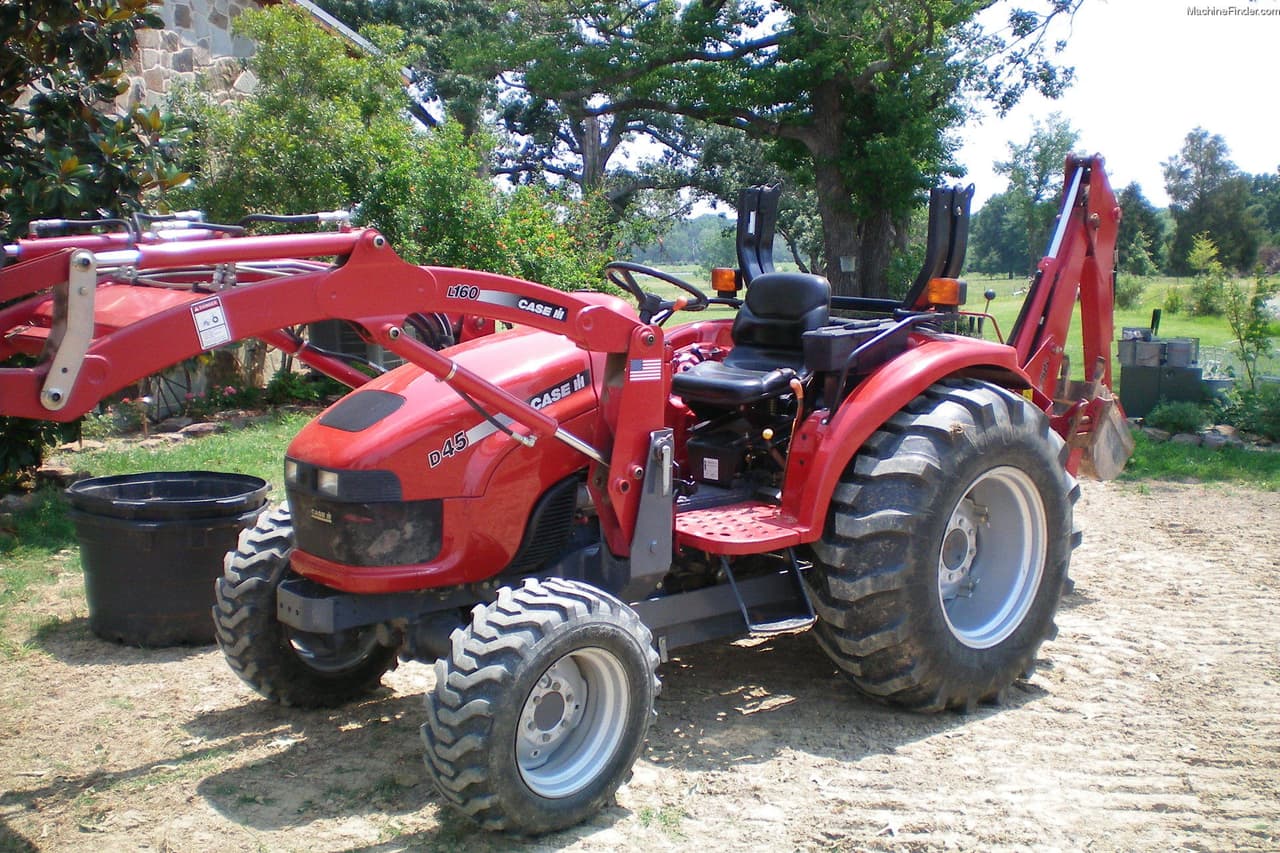

The CaseIH D45 is a versatile and robust compact utility tractor, designed for impressive performance and utmost reliability. Powered by the Shibaura 4-cylinder diesel engine, it boasts 45 horsepower, making it capable of handling a variety of tasks with ease. The engine, featuring glow plug pre-heating and liquid cooling, ensures steady power delivery and longevity. The 12-speed synchronized shuttle transmission allows smooth gear changes and superior control, regardless of the task or terrain. The tractor incorporates power steering for effortless maneuverability, and it operates at an engine rated RPM of 2600. It has a weight ranging from 3200 to 3349 pounds, contributing to its stability and traction. The tractor measures 116.3 inches in length, 61.3 inches in width, and has a height of 94 inches with the ROPS installed. Offering a blend of power, efficiency, and convenience, the CaseIH D45 is a reliable choice for various utility tasks around the farm or yard.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: 12-speed synchronized shuttle

Drive Type: 2WD

Operating Weight: 3200 to 3349

Fuel Type: Diesel

CaseIH D45 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Above Average
Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N/A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Glow plugs
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.31
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
45

Transmission

Type
12-speed synchronized shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
116.3
Width (in)
61.3
Height (in)
94
Operating Weight (lb)
3200 to 3349

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
N/A
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
N/A
Hitch Capacity (lb)
-
Operator Station Type
Open, with ROPS
Starter Type
Electric
Brake Type
N/A
Hydraulic System Type
N/A
