CaseIH D25

Last Updated: September 2024

Overview

The CaseIH D25 is a compact 2WD tractor designed for small-scale farming and light fieldwork. It features a 4x2 chassis and a 9-speed gear transmission, giving farmers 9 forward and 3 reverse gears to choose from. This versatility allows for smooth operation in various tasks around the farm.

Under the hood, the D25 is powered by a Shibaura 3-cylinder diesel engine. This liquid-cooled engine has a displacement of 81.2 ci and produces 25 hp at 2600 rpm. The tractor is equipped with an electric starter and glow plugs for easy starting in cold weather. It also has a dual element air cleaner to protect the engine from dust and debris. The D25 comes with agricultural tires, with 5.5-inch front tread width and 11.2-inch rear tread width. For added functionality, it features a Category I rear hitch, making it compatible with a range of implements.

Key Specifications

Power Output: 25 hp (18.6 kW)

Transmission: 9-speed gear

Drive Type: 2WD

Fuel Type: Diesel

Image Gallery

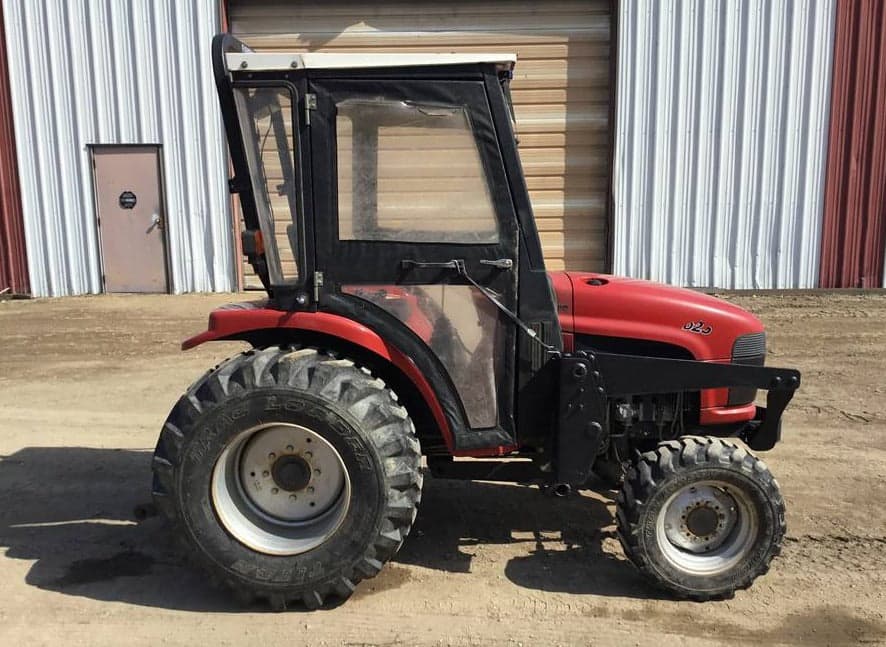

CaseIH D25 Tractor

CaseIH D25 vs. Similar Tractors

Power Output

The Power Output for the CaseIH D25 is Below Average. It is greater than 17% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH D25 is Below Average. It is greater than 14% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH D25 is Above Average. It is greater than 80% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors
