CaseIH CX80

Last Updated: June 2024

Overview

The CaseIH CX80 is a 2WD or 4WD utility tractor from the CX Utility series. Manufactured in Doncaster, England from 1998 to 2002, the tractor is equipped with a Perkins 1004.40T Four-stroke, turbocharged, liquid-cooled, inline 4-cylinder diesel engine with a displacement of 4.0 L, producing 84 HP and a torque of 253 lb-ft at 1400 RPM. Two transmission types are offered including a synchro shuttle with 8 forward and 8 reverse gears and a partial power shift with 16 forward and 8 reverse gears. Its steering is hydrostatic power and brakes are differential hydraulic wet disc. The tractor can be equipped with CaseIH 2255 loader.

Key Specifications

Category: Utility

Power Output: 84

Transmission: Synchro shuttle or Partial power shift

Drive Type: 2WD/4WD

Operating Weight: 8135

Fuel Type: Diesel

Image Gallery

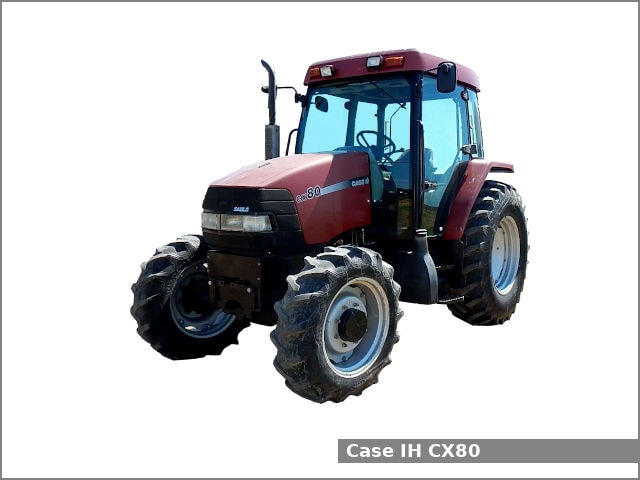

CaseIH CX80 Tractor

CaseIH CX80 vs. Similar Tractors

Power Output

Above Average

Greater than 73% of similar tractors.

Hitch Capacity

Average

Greater than 65% of similar tractors.

Operating Weight

Average

Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: 1004.40T
Cooling Type: Liquid
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 243.5
Bore (in): 3.94
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 84

Transmission

Type: Synchro shuttle or Partial power shift
Forward Gears: 8 (Synchro shuttle) or 16 (Partial power shift)
Reverse Gears: 8 (Both Synchro shuttle and Partial power shift)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 8135

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540 or 540/1,000 (optional)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 (2WD) or 4x4 (MFWD 4WD)
Drive Type: 2WD/4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 16.9
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag Front: 7.50-16, Ag Rear: 16.9-30
Manufacture - End Year: 2002
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): 3660 lbs (at ends)
Operator Station Type: Two-post ROPS with flat platform or cab (optional)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Open Center
