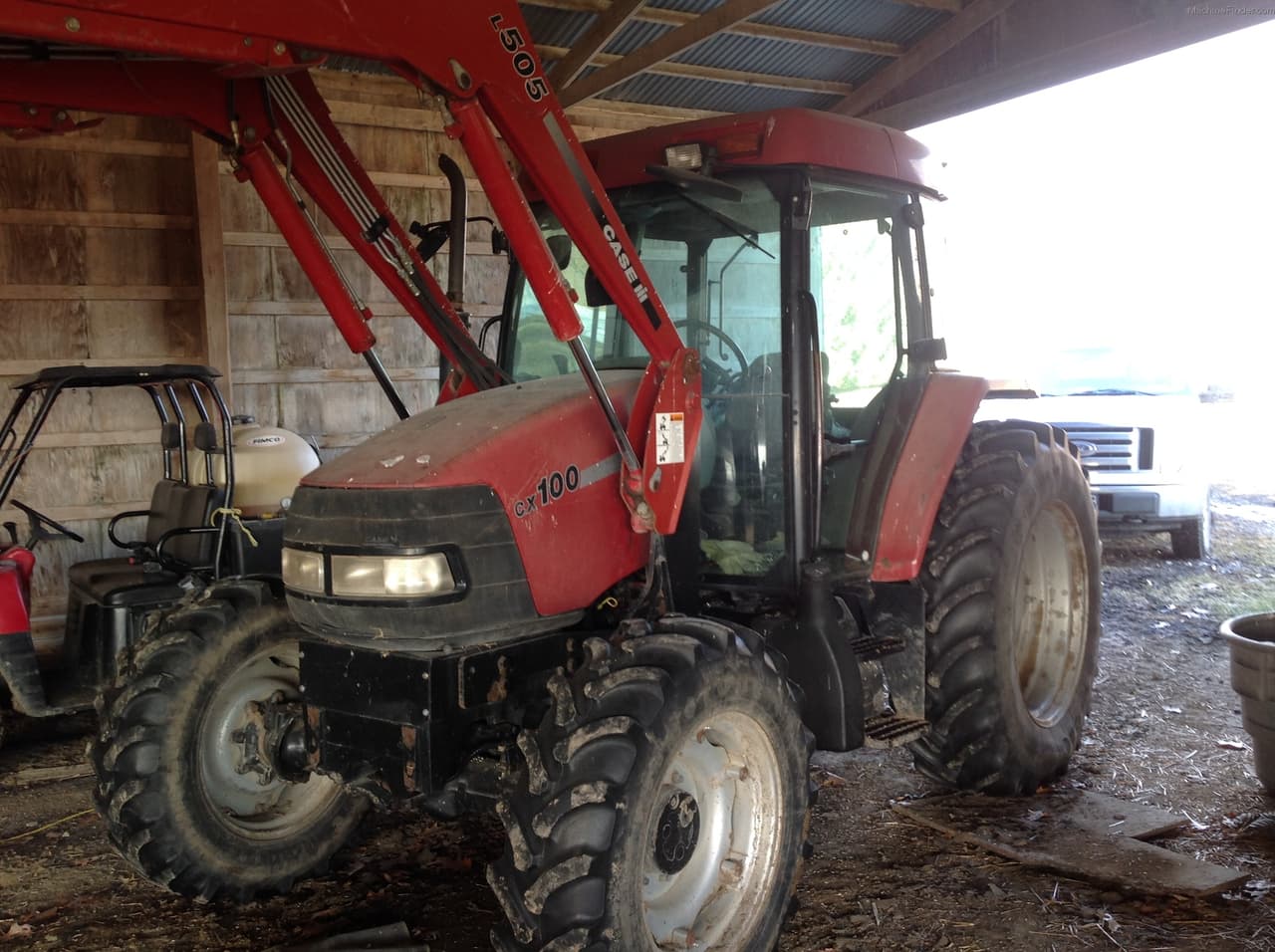

CaseIH CX100

Last Updated: June 2024

Key Specifications

Power Output: 100

Transmission: Synchro Shuttle / Partial Power Shift / Creeper

Drive Type: 2WD

Operating Weight: 7396 To 8466

Fuel Type: Diesel

Image Gallery

CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor CaseIH CX100 Tractor

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.40T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
243.5
Bore (in)
3.93
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
100

Transmission

Type
Synchro Shuttle / Partial Power Shift / Creeper
Forward Gears
8 / 16 / 24 (Depends on transmission type)
Reverse Gears
8 / 12 (Depends on transmission type)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
7396 To 8466

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 (Based on Wheelbase information provided)
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
16.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open Center
