CaseIH C80

Last Updated: June 2024

Overview

The CaseIH C80 is a 2WD or 4WD utility tractor from the CX Utility series. This tractor was manufactured by CaseIH in Doncaster, England from 1998 to 2002. The CaseIH C80 is equipped with a 4.0 L (243.5 cu·in) four-cylinder diesel engine and one of three transmission variants. The CaseIH C80 utility tractor used the Perkins 1004.40T engine. It is a 4.0 L, 3,990 cm2, (243.5 cu·in) four-cylinder turbocharged diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.25:1. This engine produced 85.1 PS (62.6 kW; 84.0 HP) at 2,200 rpm of output power and 343.1 N·m (35 kg·m, 252.9 ft·lb) at 1,400 rpm of torque. The CaseIH C80 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post ROPS with straddle platform, and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.

Key Specifications

Category: Utility

Power Output: 84

Transmission: Partial power shift with dry disc clutch

Drive Type: 2WD or 4WD

Operating Weight: 8135

Fuel Type: Diesel

Image Gallery

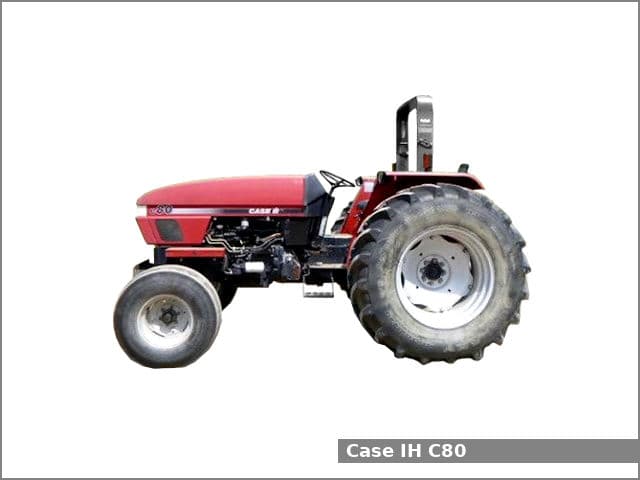

CaseIH C80 Tractor

CaseIH C80 vs. Similar Tractors

Power Output

Above Average

Greater than 73% of similar tractors.

Hitch Capacity

Excellent

Greater than 100% of similar tractors.

Operating Weight

Average

Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: 1004.40T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 243.5
Bore (in): 3.94
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 84

Transmission

Type: Partial power shift with dry disc clutch
Forward Gears: 8 or 16
Reverse Gears: 4 or 8
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 8135

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540/1000 (optional dual shaft)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD (optional)
Drive Type: 2WD or 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 16.9
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2002
Hitch Type: II/I
Hitch Category: Mechanical
Hitch Position: -
Hitch Capacity (lb): 3665 lbs (1662 kg) or 5097 lbs (2311 kg) optional
Operator Station Type: Open (Two-post ROPS with straddle platform)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Open center
