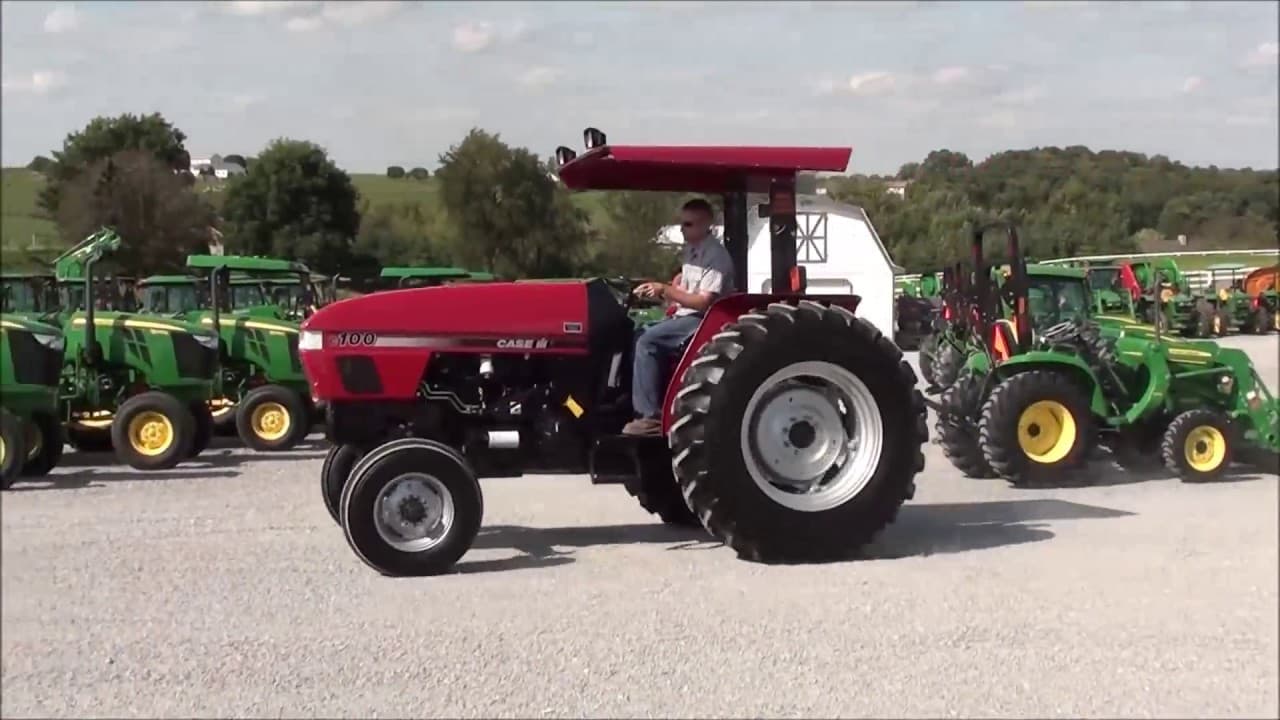

CaseIH C100

Last Updated: September 2024

Overview

The CaseIH C100 is a powerful utility tractor built for tough farm work. It has a 2WD chassis and hydrostatic power steering, making it easy to handle. The tractor comes with a synchronized transmission that offers 8 forward gears and 4 reverse gears, giving you plenty of options for different tasks.

Under the hood, you'll find a strong Perkins 1004.40T engine. This diesel engine is turbocharged and liquid-cooled, with 4 cylinders. It puts out 100 hp at 2200 rpm, which is very high for its class. The engine size is above average at 243.5 ci. The C100 weighs 8280 lb, which is also above average for utility tractors. It has a Category II/I hitch and an open center hydraulic system, making it versatile for various attachments. With its electric starter and 16.9 qts coolant capacity, this tractor is ready for long days of work on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 100 hp (74.6 kW)

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 8280 lb (3756 kg)

Fuel Type: Diesel

CaseIH C100 vs. Similar Tractors

Power Output

The Power Output for the CaseIH C100 is Above Average. It is greater than 83% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH C100 is Above Average. It is greater than 79% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH C100 is Above Average. It is greater than 70% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH C100 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.40T
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
244 ci (4.0 L)
Bore
3.93 in (99.8 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2200
Power Output
100 hp (74.6 kW)

Transmission

Type
Synchronized
Forward Gears
8
Reverse Gears
4

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
