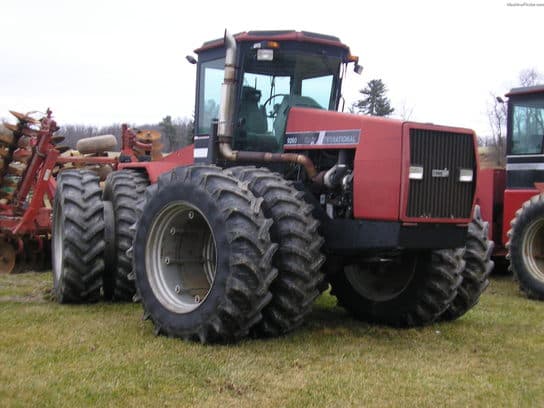

CaseIH 9260

Last Updated: September 2024

Overview

The CaseIH 9260 is a powerful utility tractor built for tough farm work. It has a strong four-wheel drive system and a smooth-turning four-wheel steering setup. The tractor uses a full power shift transmission with 12 forward gears and 3 reverse gears, giving farmers lots of options for different tasks.

Under the hood, the CaseIH 9260 has a big Cummins diesel engine. This engine is turbocharged and has 6 cylinders, making it very strong. It can produce 300 horsepower, which is a lot for a tractor. The engine size and power are both very high compared to other tractors. The tractor is also quite heavy, weighing 22,000 pounds, which helps it handle tough jobs. It has special features like hydraulic brakes and a rear hitch for attaching tools. The CaseIH 9260 is a big tractor, standing 143 inches tall, and it can be very wide with dual tires.
Show more...

Key Specifications

Category: Utility

Power Output: 300 hp (223.7 kW)

Transmission: Full power shift

Drive Type: Four-Wheel Drive (4WD)

Operating Weight: 22000 lb (9979 kg)

Fuel Type: Diesel

CaseIH 9260 vs. Similar Tractors

Power Output

The Power Output for the CaseIH 9260 is Excellent. It is greater than 97% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH 9260 is Excellent. It is greater than 95% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH 9260 is Excellent. It is greater than 94% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH 9260 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Cummins
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged and aftercooled
Cylinders
6
Displacement
611 ci (10.0 L)
Bore
4.92 in (125.0 mm)
Stroke
5.35 in (135.9 mm)
Rated RPM
2100
Power Output
300 hp (223.7 kW)

Transmission

Type
Full power shift
Forward Gears
12
Reverse Gears
3

Drivetrain

Chassis
4x4 4WD
Drive Type
Four-Wheel Drive (4WD)
Steering Type
Four-wheel hydrostatic power
Brake Type
Hydraulic wet disc
