CaseIH 9180

Last Updated: June 2024

Overview

The CaseIH 9180 is a robust four-wheel drive (4WD) tractor boasting an impressive 375 horsepower. It features a large 6-cylinder Cummins NTA-855 engine. This turbocharged, intercooled diesel engine, with liquid cooling system, ensures it operates efficiently under strenuous conditions. A full power shift transmission powers this machine, offering 12 forward gears and 2 reverse gears, allowing for versatile speed and control capabilities. With its wide wheelbase and large frame ground clearance, the 9180 is built to handle a variety of terrain smoothly and securely. The hydrostatic power steering ensures easy manipulation of the vehicle, and the tractor possesses a significant operating weight capability of 28,000lbs. With an overall length of 279.5 inches, width of 92.3 inches, and height of 149.6 inches, the 9180 is a large machine constructed for heavy-duty operation.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 375

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 28,000

Fuel Type: Diesel

Image Gallery

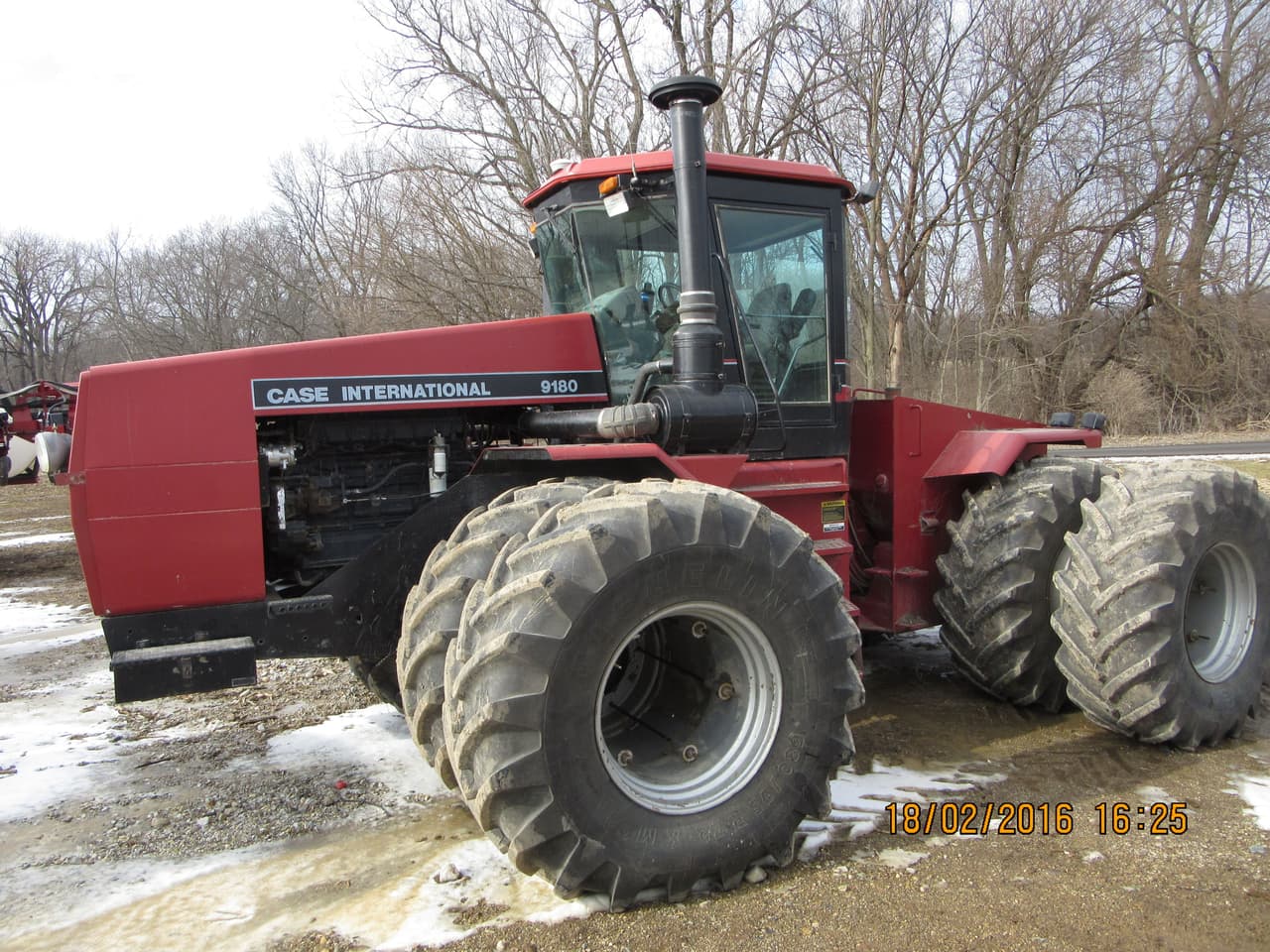

CaseIH 9180 Tractor

CaseIH 9180 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Poor

Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: NTA-855
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 6
Displacement (ci): 855
Bore (in): 5.5
Stroke (in): 6
Rated RPM: 2100
Power Output (hp): 375

Transmission

Type: Full power shift
Forward Gears: 12
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 279.5
Width (in): 92.3
Height (in): 149.6
Operating Weight (lb): 28,000

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 66
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: IV
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center
