CaseIH 9130

Last Updated: June 2024

Overview

The CaseIH 9130 is a Four-wheel Drive tractor delivering a powerful output of 220 hp. It is built on a 4x4 articulated 4WD chassis and is equipped with hydrostatic power for a steerable front axle and articulated chassis. The engine model is CDC 6CTA, a turbocharged aftercooled diesel engine, with 6 cylinders and 505 ci displacement. It has a 12-speed full power shift transmission system. The front and rear tire specs are the same at 18.4-38 Ag type. It has a length of 241.6 inches, width of 119.5 inches, and height of 129.6 inches. The operational weight is around 17,600 lbs.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 220

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 17600

Fuel Type: Diesel

Image Gallery

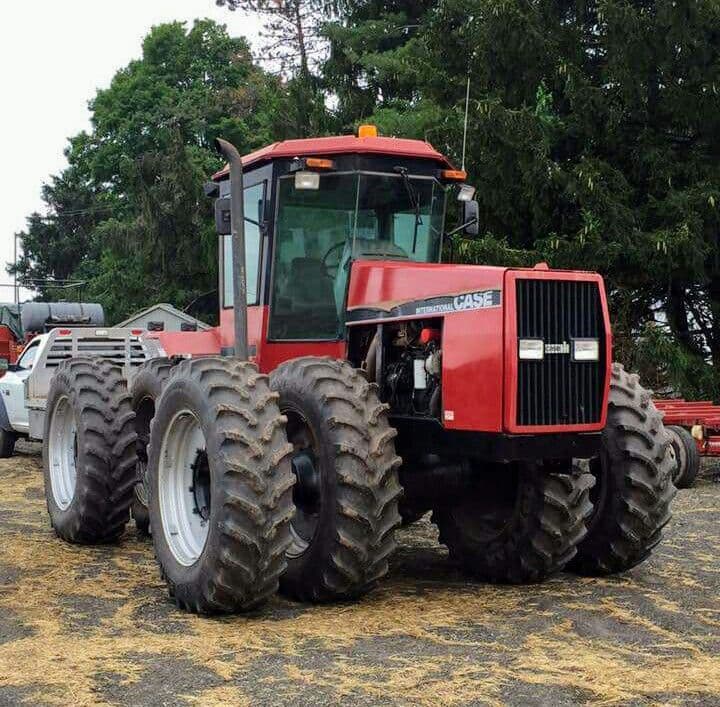

CaseIH 9130 Tractor

CaseIH 9130 vs. Similar Tractors

Power Output

Excellent

Greater than 93% of similar tractors.

Operating Weight

Average

Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer: -
Model: CDC 6CTA
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 505
Bore (in): 4.49
Stroke (in): 5.32
Rated RPM: 2100
Power Output (hp): 220

Transmission

Type: Full power shift
Forward Gears: 12
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 241.6
Width (in): 119.5
Height (in): 129.6
Operating Weight (lb): 17600

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power for steerable front axle and articulated chassis
Coolant Capacity (qts): 38
Front Tire Diameter (in): 38
Front Tire Width (in): 18.4
Rear Tire Diameter (in): 38
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag type
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III (Optional Rear Type)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12V)
Brake Type: -
Hydraulic System Type: Closed Center
