CaseIH 8950

Last Updated: June 2024

Overview

The CaseIH 8950 Magnum is a 4WD row-crop tractor from the Magnum 8900 series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1997 to 1998. The tractor is equipped with a CDC 6-cylinder turbocharged and intercooled Diesel engine which delivers 225 HP. The transmission system is a Full Power Shift with a hydraulic wet disc clutch, providing a selection of 18 forward and 4 reverse gears. Power steering and differential hydraulic wet disc brakes make for better control and safe operation. The tractor comes standard with a cabin and air conditioning for operator comfort. The hitch system is a category III/IIIN with an electronic lower-link draft sensing. The tractor has an independent PTO with an electro-hydraulic wet disc clutch operating at 1000 rpm.

Key Specifications

Category: Row Crop

Power Output: 225

Transmission: Full Power Shift, Hydraulic Wet Disc Clutch

Drive Type: MFWD 4WD

Operating Weight: 18340

Fuel Type: Diesel

Image Gallery

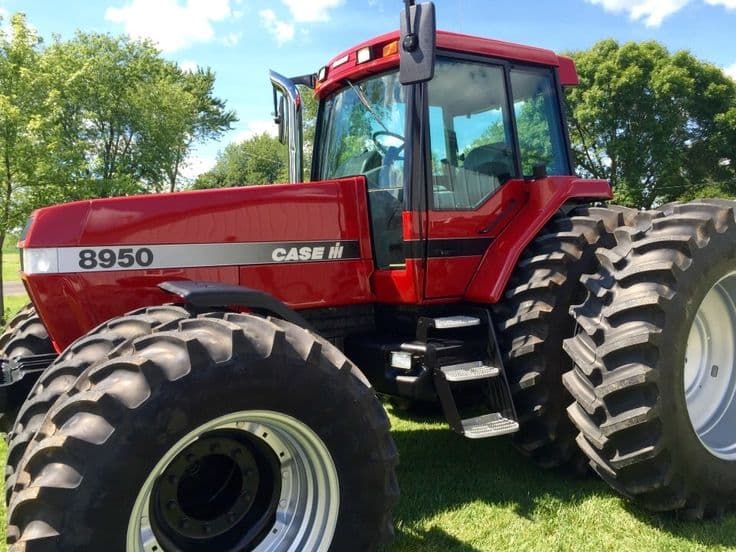

CaseIH 8950 Tractor

CaseIH 8950 vs. Similar Tractors

Power Output

Above Average

Greater than 79% of similar tractors.

Hitch Capacity

Above Average

Greater than 76% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: CDC
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and Intercooled
Cylinders: 6
Displacement (ci): 504.5
Bore (in): 4.49
Stroke (in): 5.31
Rated RPM: 2200
Power Output (hp): 225

Transmission

Type: Full Power Shift, Hydraulic Wet Disc Clutch
Forward Gears: 18
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 18340

Power Take-Off (PTO)

PTO Type: Independent with Electro-Hydraulic Wet Disc Clutch
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): 31
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1998
Hitch Type: III/IIIN
Hitch Category: Electronic Lower-link Draft Sensing
Hitch Position: Rear
Hitch Capacity (lb): 16000 lbs
Operator Station Type: Cab with air-conditioning
Starter Type: Electric
Brake Type: Differential Hydraulic Wet Disc
Hydraulic System Type: Closed Center Pressure-Flow Compensated
