CaseIH 7250

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 215

Transmission: Full power shift and Hydraulic wet disc clutch

Drive Type: Four-wheel drive (4WD)

Operating Weight: 18140

Fuel Type: Diesel

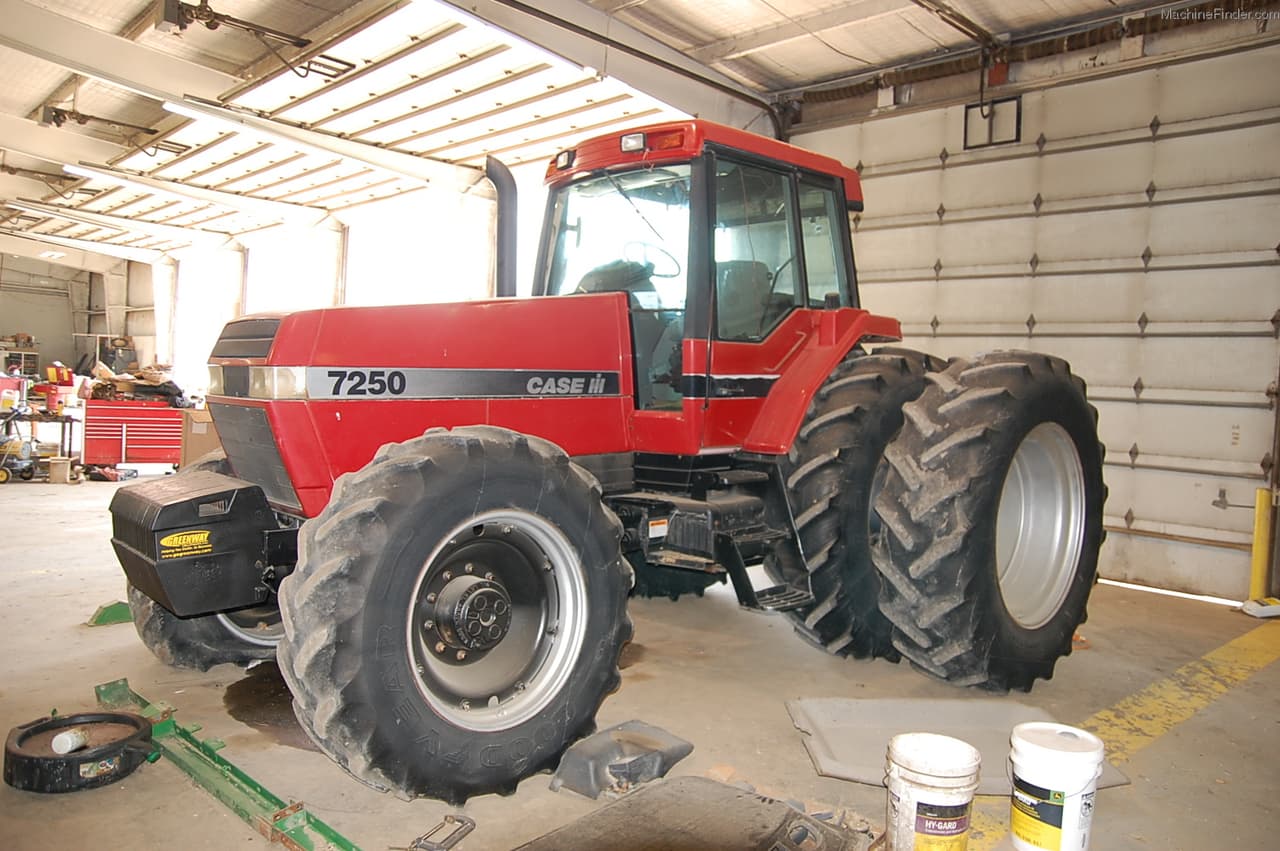

Image Gallery

CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor CaseIH 7250 Tractor

CaseIH 7250 vs. Similar Tractors

Power Output
Above Average
Greater than 76% of similar tractors.
Hitch Capacity
Above Average
Greater than 72% of similar tractors.
Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
504.5
Bore (in)
4.49
Stroke (in)
5.31
Rated RPM
2200
Power Output (hp)
215

Transmission

Type
Full power shift and Hydraulic wet disc clutch
Forward Gears
18
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18140

Power Take-Off (PTO)

PTO Type
Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
Four-wheel drive (4WD)
Steering Type
Power
Coolant Capacity (qts)
31
Front Tire Diameter (in)
28
Front Tire Width (in)
16.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
III
Hitch Position
-
Hitch Capacity (lb)
14950
Operator Station Type
Cab (standard) with air-conditioning
Starter Type
Electric
Brake Type
Differential hydraulic wet disc
Hydraulic System Type
Closed center pressure flow compensated (PFC)
