CaseIH 7110

Last Updated: June 2024

Overview

The CaseIH 7110 is a 2WD or 4WD row-crop tractor from the Magnum series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1987 to 1993. The CaseIH 7110 is equipped with a 8.3 L (504.5 cu·in) six-cylinder diesel engine and one of three transmissions: a full power shift transmission with 18 forward and 2 reverse gears, a powershift transmission with creeper and 24 forward and 3 reverse gears or a full power shift transmission with 18 forward and 4 reverse gears.

Key Specifications

Category: Row Crop

Power Output: 130

Transmission: Full power shift / Powershift with creeper

Drive Type: 4WD/2WD

Operating Weight: 15278 (2WD), 16535 (4WD)

Fuel Type: Diesel

Image Gallery

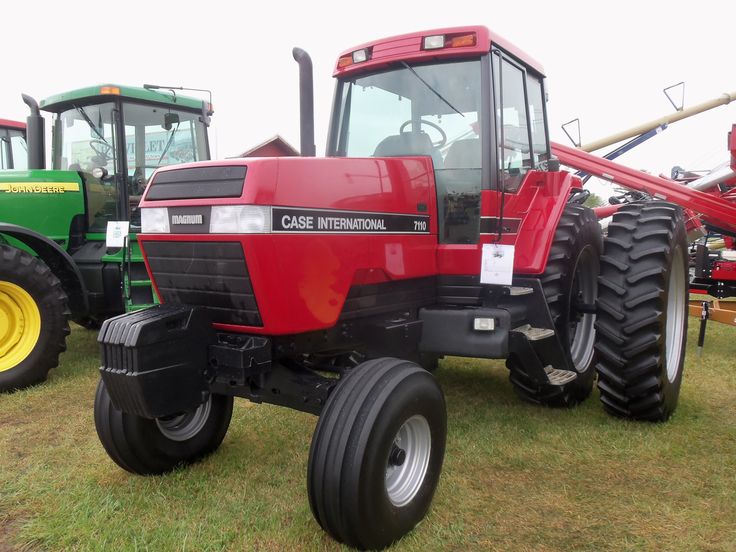

CaseIH 7110 Tractor

CaseIH 7110 vs. Similar Tractors

Power Output

Average

Greater than 42% of similar tractors.

Hitch Capacity

Average

Greater than 49% of similar tractors.

Operating Weight

Above Average

Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer: CDC
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 504.5
Bore (in): 4.49
Stroke (in): 5.31
Rated RPM: 2200
Power Output (hp): 130

Transmission

Type: Full power shift / Powershift with creeper
Forward Gears: 18 / 24
Reverse Gears: 2/3/2004
Total Gears: -

Dimensions

Length (in): 190.9 (2WD), 197.6 (4WD)
Width (in): -
Height (in): 118.1 (2WD), 117.3 (4WD)
Operating Weight (lb): 15278 (2WD), 16535 (4WD)

Power Take-Off (PTO)

PTO Type: Independent with wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD / 4x2 2WD
Drive Type: 4WD/2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 30
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1993
Hitch Type: Electronic lower link
Hitch Category: Category III/IIIN
Hitch Position: Rear
Hitch Capacity (lb): 7695 lbs
Operator Station Type: Silent Guardian II Cab with air-conditioning (standard)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Closed center pressure flow compensated (PFC)
