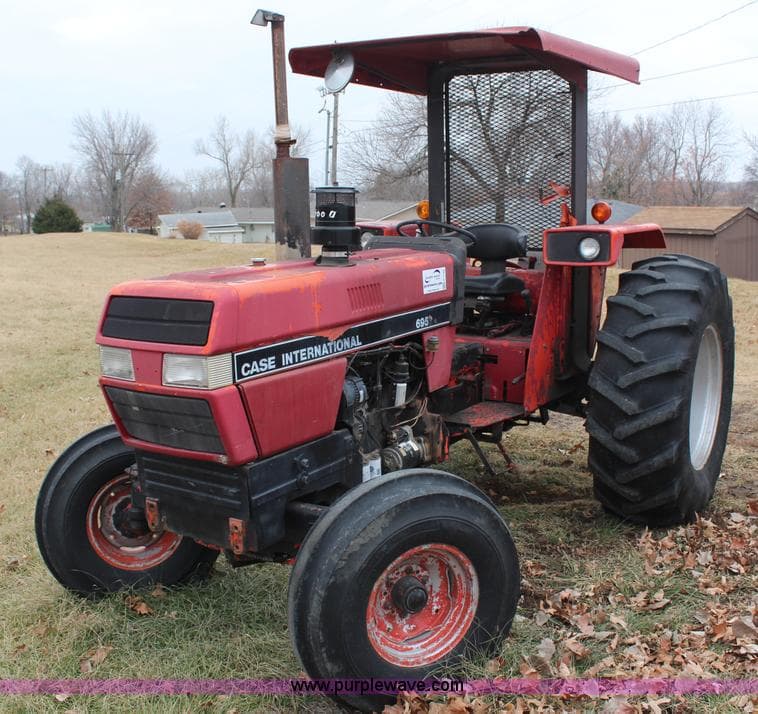

CaseIH 695

Last Updated: June 2024

Overview

The CaseIH 695 is a reliable utility tractor that was built with durability and efficiency in mind. Its versatile design combines fluid power with mechanical transmissions, offering an 8-speed partially synchronized transmission and a power steering system. The tractor delivers a significant power output of 72 hp, thanks to its 4-cylinder Case IH diesel engine, liquid cooled and displacing 238.8 cubic inches. The tractor features both a ROPS and cab operator station, appealing to farmers with varying needs. Its size is impressive, with a length of 142 inches, a uwidth of 75 inches, and a height ranging from 96.5 inches (with ROPS) to 100.4 inches (with cab). The 695 model offers different operating weights depending on the exact specifications, including 2WD or 4WD and ROPS or cab, ranging from 5720 lbs to 7585 lbs. The hydraulic system type is open center to deliver efficient and reliable power, crucial for all types of farm work.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 5720 (2WD ROPS Shipping), 6520 (2WD Cab Shipping), 6785 (4WD Cab Shipping), 7585 (4WD Cab Shipping)

Fuel Type: Diesel

CaseIH 695 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
Case IH
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
238.8
Bore (in)
3.875
Stroke (in)
5.06
Rated RPM
2400
Power Output (hp)
72

Transmission

Type
Partially synchronized
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
142
Width (in)
75
Height (in)
96.5 (ROPS), 100.4 (cab)
Operating Weight (lb)
5720 (2WD ROPS Shipping), 6520 (2WD Cab Shipping), 6785 (4WD Cab Shipping), 7585 (4WD Cab Shipping)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
14.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
