CaseIH 685

Last Updated: June 2024

Overview

The CaseIH 685 is a utility tractor from the 85 Utility series, manufactured by CaseIH in Doncaster, England from 1985 to 1990. It uses a 3.9 L four-cylinder Diesel engine known as the CaseIH D239. This power is managed through either a gear type transmission with 8 forward and 4 reverse gears or a two-speed power shift transmission with 16 forward and 8 reverse gears. The tractor comes with optional four-wheel drive and optional cab.

Key Specifications

Category: Utility

Power Output: 73 hp

Transmission: Gear or Two-speed power shift

Drive Type: 2WD or 4WD

Operating Weight: 5659 lbs (2WD)

Fuel Type: Diesel

Image Gallery

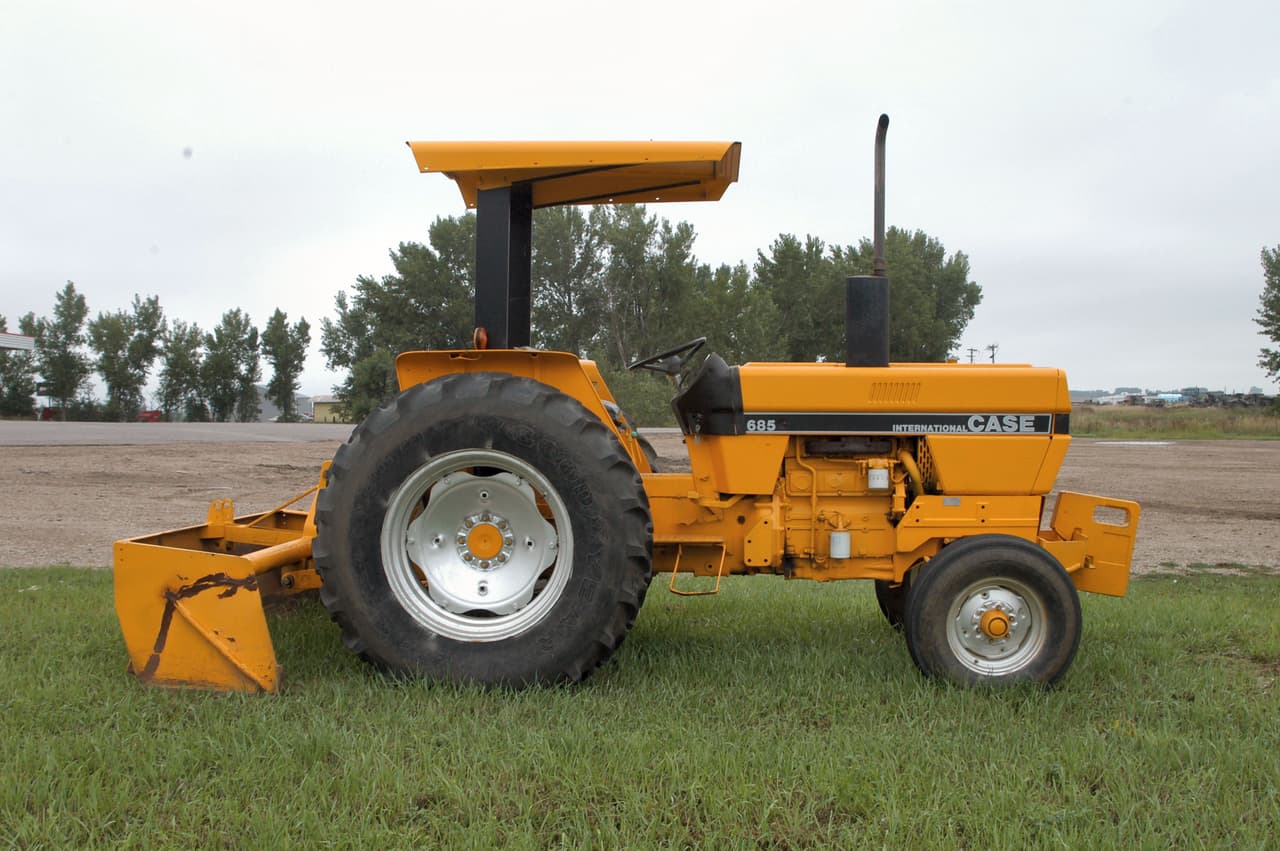

CaseIH 685 Tractor

CaseIH 685 vs. Similar Tractors

Power Output

Average

Greater than 66% of similar tractors.

Hitch Capacity

Average

Greater than 58% of similar tractors.

Operating Weight

Above Average

Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer: CaseIH
Model: D239
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 238.8 ci
Bore (in): 3.875 in
Stroke (in): 5.06 in
Rated RPM: 2400 rpm
Power Output (hp): 73 hp

Transmission

Type: Gear or Two-speed power shift
Forward Gears: 8 or 16
Reverse Gears: 4 or 8
Total Gears: -

Dimensions

Length (in): 141.3 in
Width (in): -
Height (in): 93.3 in (2WD), 96.5 in (4WD)
Operating Weight (lb): 5659 lbs (2WD)

Power Take-Off (PTO)

PTO Type: Rear PTO
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000 (rpm)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1990
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): 3260 lbs
Operator Station Type: Two-post ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Differential Hydraulic Wet Disc
Hydraulic System Type: Open Center
