CaseIH 5250 Maxxum

Last Updated: June 2024

Overview

The CaseIH 5250 Maxxum is a 2WD or 4WD utility tractor which was manufactured from 1992 to 1997. Known for its powerful 5.9L six-cylinder diesel engine and efficient power steering, this model was offered with either a 16 forward and 12 reverse or 24 forward and 20 reverse gears transmission granting the operator flexibility for any task. Additional specs included a partial power shift transmission, an independent PTO with two speeds, and a hydraulic system type of closed center. This model magnified strength being able to hold a weight of up to 16005 lbs when fully ballasted.
Show more...

Key Specifications

Category: Utility

Power Output: 112 hp

Transmission: Partial power shift

Drive Type: 2WD or 4WD

Operating Weight: 2WD:9810 lbs, 4WD: 11090 lbs, Ballasted: 16005 lbs

Fuel Type: Diesel

Image Gallery

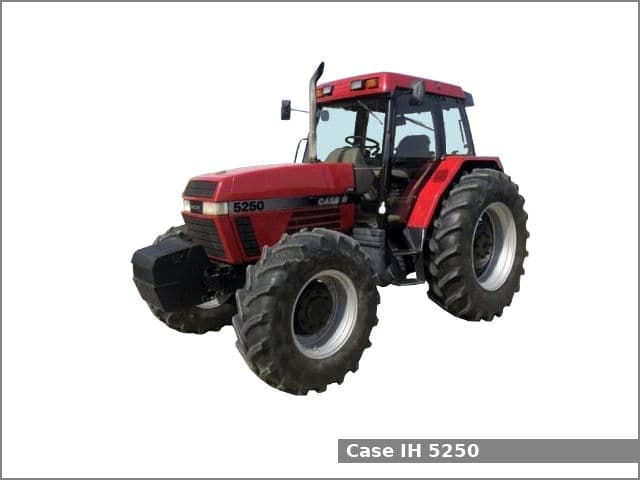

CaseIH 5250 Maxxum Tractor CaseIH 5250 Maxxum Tractor CaseIH 5250 Maxxum Tractor CaseIH 5250 Maxxum Tractor CaseIH 5250 Maxxum Tractor CaseIH 5250 Maxxum Tractor

CaseIH 5250 Maxxum vs. Similar Tractors

Power Output
Above Average
Greater than 86% of similar tractors.
Hitch Capacity
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359 ci
Bore (in)
4.02 in
Stroke (in)
4.72 in
Rated RPM
2200 RPM
Power Output (hp)
112 hp

Transmission

Type
Partial power shift
Forward Gears
16 or 24
Reverse Gears
12 or 20
Total Gears
-

Dimensions

Length (in)
Range of 170.6 to 174.2 inches
Width (in)
Ranges from 60 to 88 inches based on track settings
Height (in)
Cab: 106.1 inches
Operating Weight (lb)
2WD:9810 lbs, 4WD: 11090 lbs, Ballasted: 16005 lbs

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540 rpm
PTO Speed 2 (rpm)
1000 rpm
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 4WD
Drive Type
2WD or 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag Tires
Manufacture - End Year
1997
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
3490 kg
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center
