CaseIH 5130 Maxxum

Last Updated: June 2024

Overview

The CaseIH 5130 Maxxum is a utility tractor that offers exceptional performance and versatility. It comes with a 105 horsepower diesel engine built by CDC. The tractor boasts a fully synchronized or power shuttle transmission system, providing 16 forward and 12 reverse gears. Known for its durable, liquid-cooled engine, this tractor offers power steering and a closed center pressure flow compensated hydraulic system. This versatile tractor has an operating weight range of 9458 to 10582 lbs and can be fitted with either open operator station or a cab.
Show more...

Key Specifications

Category: Utility

Power Output: 105

Transmission: Fully synchronized / Power shuttle

Drive Type: 2WD

Operating Weight: 9458 to 10582

Fuel Type: Diesel

Image Gallery

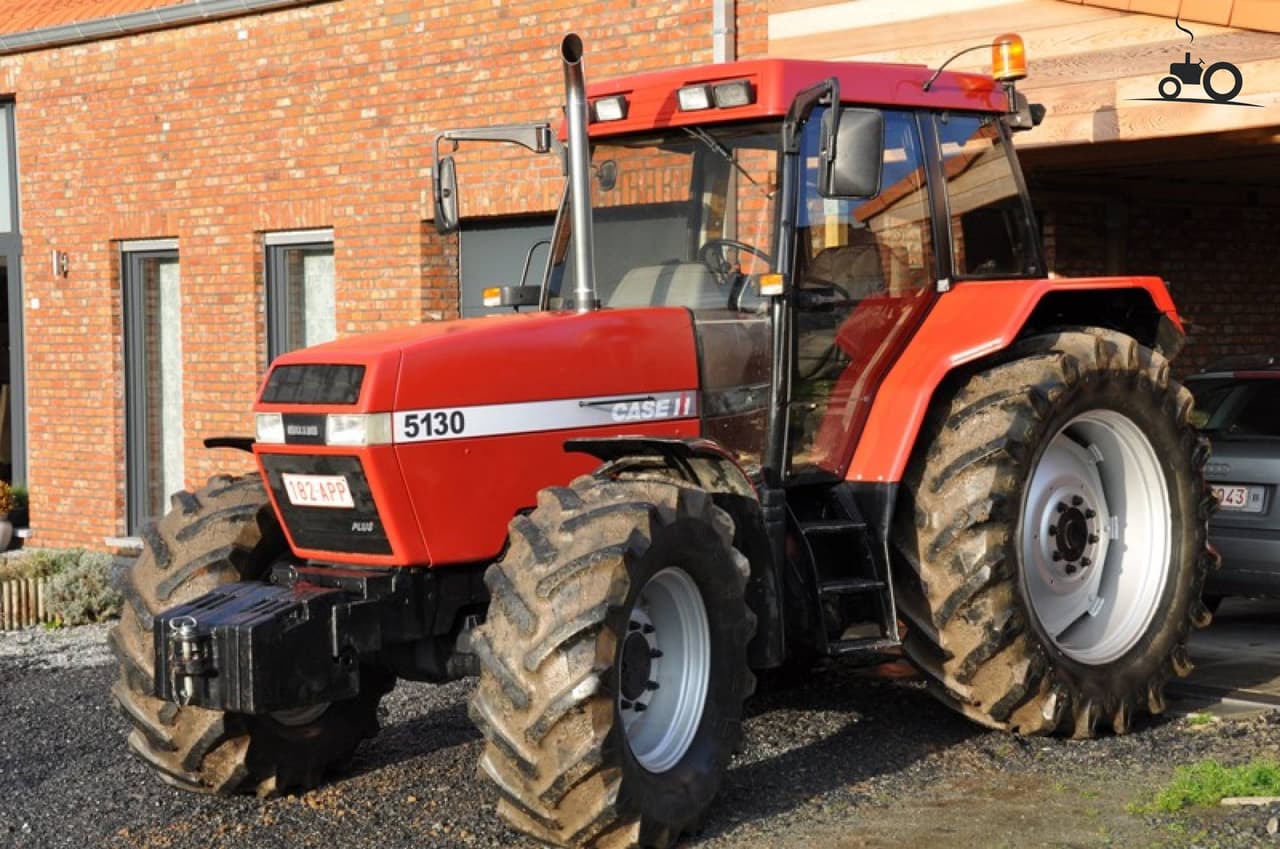

CaseIH 5130 Maxxum Tractor CaseIH 5130 Maxxum Tractor CaseIH 5130 Maxxum Tractor CaseIH 5130 Maxxum Tractor

CaseIH 5130 Maxxum vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
6-590
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
Direct Injection
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
6
Displacement (ci)
359
Bore (in)
4.02
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
105

Transmission

Type
Fully synchronized / Power shuttle
Forward Gears
16
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
175.3
Width (in)
86.8
Height (in)
106.1
Operating Weight (lb)
9458 to 10582

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
22
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensated
