CaseIH 4994

Last Updated: June 2024

Overview

The CaseIH 4994 is a highly reliable tractor that was produced by CaseIH in Racine, Wisconsin, USA from 1984 to 1987. It is equipped with a powerful 14.2-liter, eight-cylinder Saab-Scania diesel engine and a full powershift transmission featuring 12 forward and 2 reverse gears and a hydraulic wet disc clutch. This tractor is perfect for heavy workloads, with an operating weight of 31,315 pounds and a high power output of 400 horsepower. Enhanced with a 4x4 4WD chassis and hydraulic, front, rear, or four-wheel crab steering, it ensures optimum control and handling on various terrains. The tractor also comes with a Silent Guardian cab for operator comfort and safety.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 400

Transmission: Full powershift with hydraulic wet disc

Drive Type: 4WD

Operating Weight: 31,315

Fuel Type: Diesel

Image Gallery

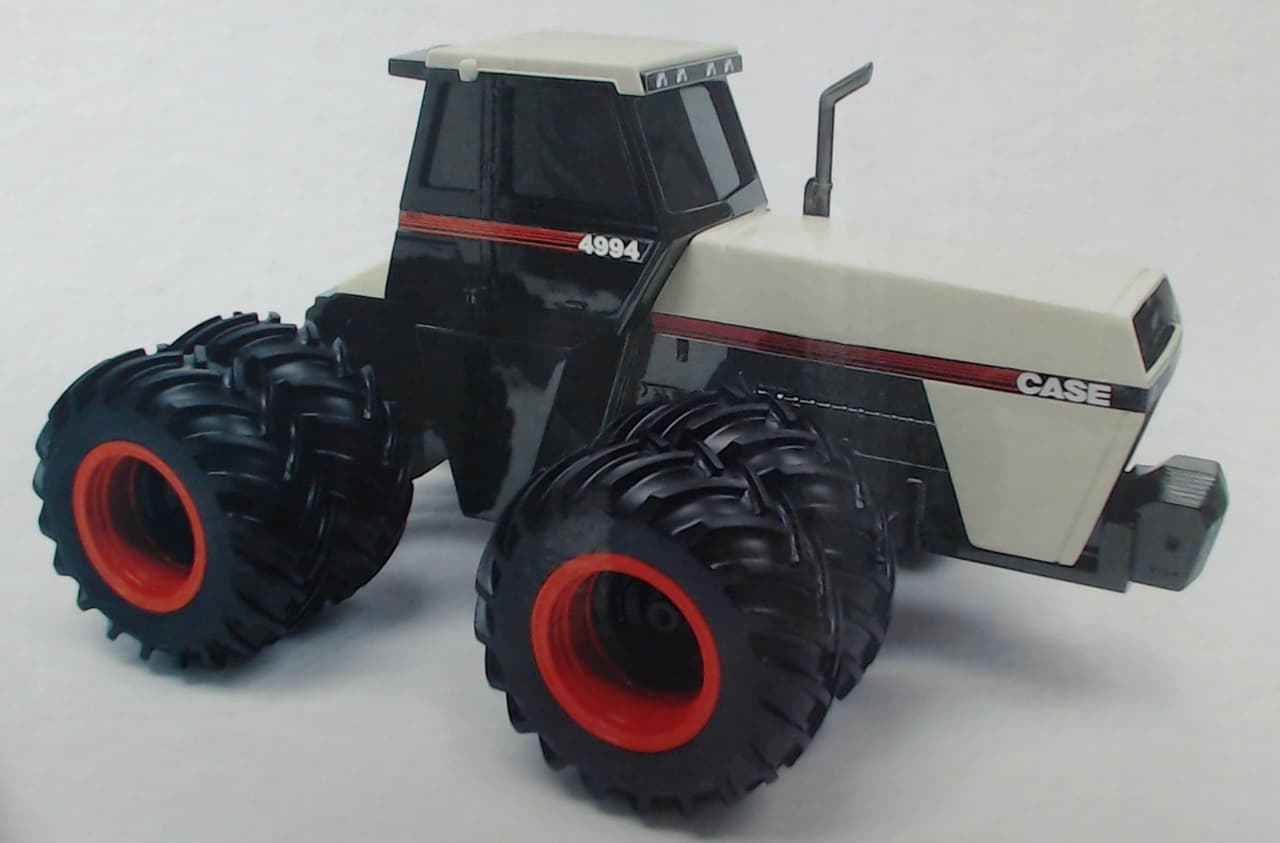

CaseIH 4994 Tractor

CaseIH 4994 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Poor

Greater than 7% of similar tractors.

Technical Specifications

Engine

Manufacturer: Saab-Scania
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 8
Displacement (ci): 866
Bore (in): 5
Stroke (in): 5.51
Rated RPM: 2100
Power Output (hp): 400

Transmission

Type: Full powershift with hydraulic wet disc
Forward Gears: 12
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 261.8
Width (in): 117 (minimum)
Height (in): 138.5
Operating Weight (lb): 31,315

Power Take-Off (PTO)

PTO Type: Independent (optional)
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 4WD
Drive Type: 4WD
Steering Type: Hydraulic, front, rear or four-wheel crab steering
Coolant Capacity (qts): 88
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agriculture
Manufacture - End Year: 1987
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Silent Guardian cab (standard)
Starter Type: Electric
Brake Type: Hydraulic dual caliper disc
Hydraulic System Type: Open center
