CaseIH 4894

Last Updated: June 2024

Overview

The CaseIH 4894 is a robust and powerful four-wheel drive tractor designed for a breadth of farming and agricultural functions. It is powered by a Saab-Scania built, turbocharged, liquid-cooled engine which has a 6-cylinder configuration. The engine has an impressive displacement of 674 ci and is capable of producing a power output of 300 hp. The hydraulic system type is closed center. The tractor has 12 forward and 4 reverse gears with a 12-speed partial power shift transmission. Notably, the tractor's operating weight is hefty at approximately 25,750 lbs. The tractor measures 237 inches in length, with a minimum width of 99 inches and 125 inches in height to the top of the exhaust.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 300

Transmission: 12-speed partial power shift

Drive Type: 4WD

Operating Weight: 25,750

Fuel Type: Diesel

Image Gallery

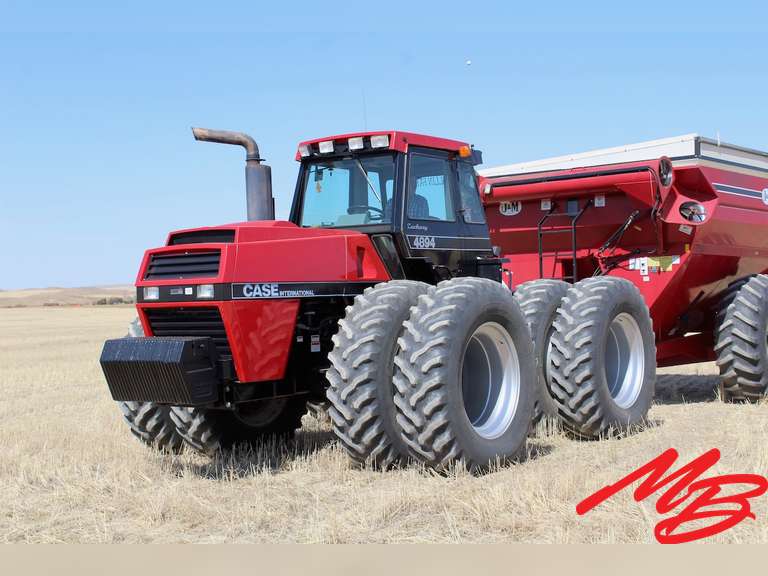

CaseIH 4894 Tractor

CaseIH 4894 vs. Similar Tractors

Power Output

Excellent

Greater than 94% of similar tractors.

Operating Weight

Poor

Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer: Saab-Scania
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 674
Bore (in): 5
Stroke (in): 5.71
Rated RPM: 2200
Power Output (hp): 300

Transmission

Type: 12-speed partial power shift
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 237
Width (in): 99 (minimum)
Height (in): 125 (exhaust)
Operating Weight (lb): 25,750

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 4WD
Drive Type: 4WD
Steering Type: Hydraulic, front, rear or four-wheel crab steering
Coolant Capacity (qts): 44
Front Tire Diameter (in): -
Front Tire Width (in): 18.4
Rear Tire Diameter (in): -
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category III (optional)
Hitch Category: III
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: Closed Center
