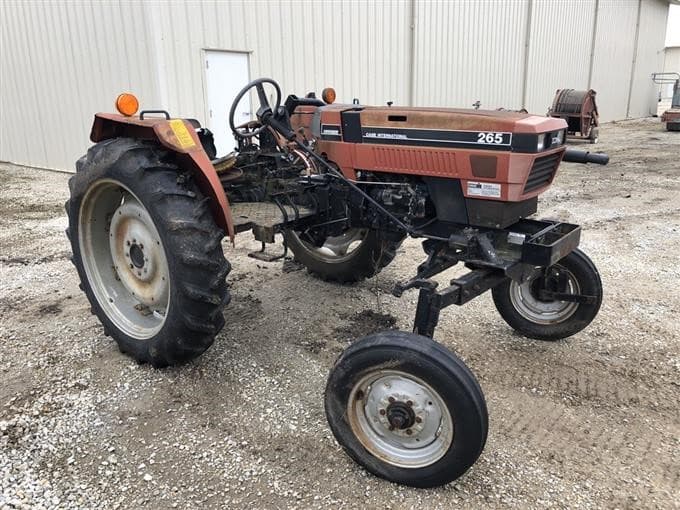

CaseIH 265

Last Updated: June 2024

Overview

The CaseIH 265 is a versatile high-clearance tractor designed to meet a range of agri-based applications. Manufactured by CaseIH, it operates on a Mitsubishi 3-cylinder liquid-cooled diesel engine with a displacement of 78.7 cubic inches that outputs a power of 27 horsepower. This tractor provides a manual steering system, making it easy to maneuver, and a constant mesh transmission with 9 forward and 3 reverse gears. The tractor has a 4x2 2WD wheel configuration, ensuring smooth and efficient operation in agricultural landscapes. It includes both agricultural and lawn/turf tires and boasts a length of 109.6 inches. With a height of 90.2 inches and an operating weight of 2320 lbs, it offers the durability and stability necessary in challenging terrains. The CaseIH 265 model is equipped with an open-type hydraulic system and a dry cyclone type air cleaner, enhancing its overall performance and reliability.
Show more...

Key Specifications

Category: Utility, High-Clearance

Power Output: 27

Transmission: Constant Mesh

Drive Type: 2WD

Operating Weight: 2320

Fuel Type: Diesel

CaseIH 265 vs. Similar Tractors

Power Output
Below Average
Greater than 21% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
78.7
Bore (in)
3.07
Stroke (in)
3.54
Rated RPM
2700
Power Output (hp)
27

Transmission

Type
Constant Mesh
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
109.6
Width (in)
-
Height (in)
90.2
Operating Weight (lb)
2320

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
6.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural and Lawn/Turf
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open
