CaseIH 2294

Last Updated: June 2024

Overview

CaseIH 2294 is a powerful Row-Crop tractor manufactured by Case. Fitted with a turbocharged diesel engine, it delivers a strong 154 horsepower, suitable for a range of applications in the field. The engine is liquid-cooled with a substantial coolant capacity of 38 quarts. The tractor employs a three-speed power shift transmission, providing 12 forward speeds and 3 reverse speeds. The chassis features a 4x2 wheel configuration with 2WD drive facilitating maneuverability on varied terrain. The tractor weighs in at a solid 14,390 lbs when operating, making it a durable and reliable choice for demanding agricultural tasks.

Key Specifications

Category: Row Crop

Power Output: 154

Transmission: Three-speed power shift

Drive Type: 2WD

Operating Weight: 14390

Fuel Type: Diesel

Image Gallery

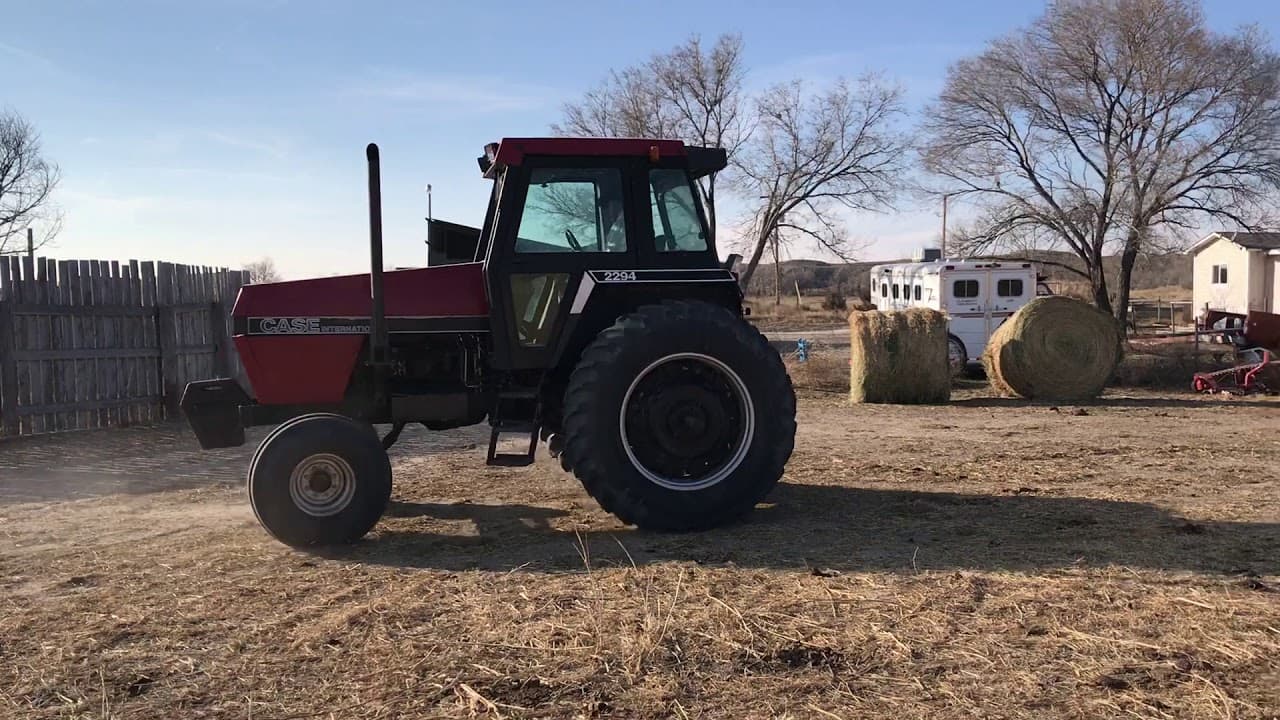

CaseIH 2294 Tractor

CaseIH 2294 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Operating Weight

Average

Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer: Case
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 504
Bore (in): 4.625
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 154

Transmission

Type: Three-speed power shift
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 14390

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 38
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (agricultural)
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed Center
