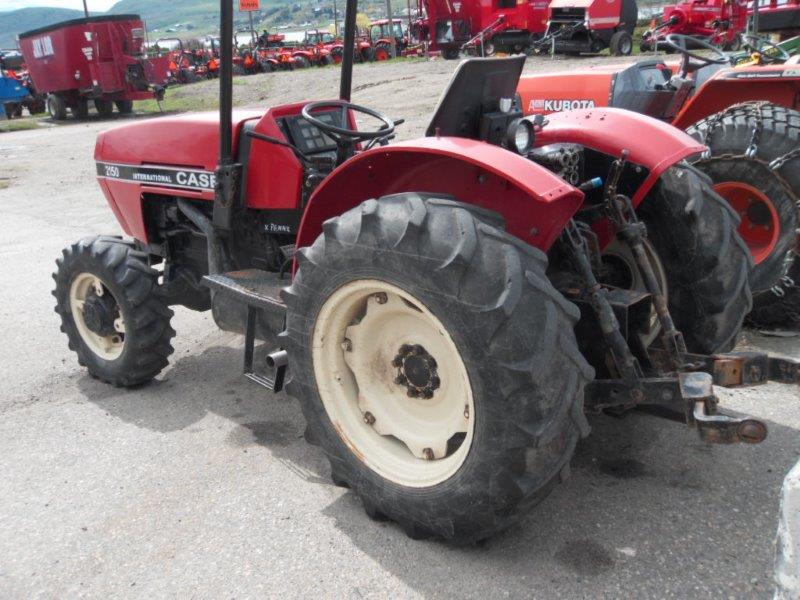

CaseIH 2150

Last Updated: June 2024

Overview

The CaseIH model 2150 is a tractor with a diesel, 4-cylinder, air-cooled Carraro engine with a displacement of 244.1 cubic inches. The engine runs at a rated RPM of 2350. The transmission is partially synchronized and offers 8 gears for both forward and reverse motion. This model has hydrostatic power steering and the hydraulic system is of an open center type. The 2150 model comes in two variations with slightly different dimensions and weights. With a rear hitch of Category I/II, this tractor demonstrates versatility. Its initial manufacture date and end of production remain unknown as is its brake type.
Show more...

Key Specifications

Transmission: Partially synchronized

Operating Weight: 4718, 4806

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Carraro
Model
SLH 1000.4.A
Cooling Type
Air-cooling
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
244.1
Bore (in)
4.134
Stroke (in)
4.547
Rated RPM
2350
Power Output (hp)
-

Transmission

Type
Partially synchronized
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
137.4, 138
Width (in)
47.8, 53.7
Height (in)
51.3, 97.8
Operating Weight (lb)
4718, 4806

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
