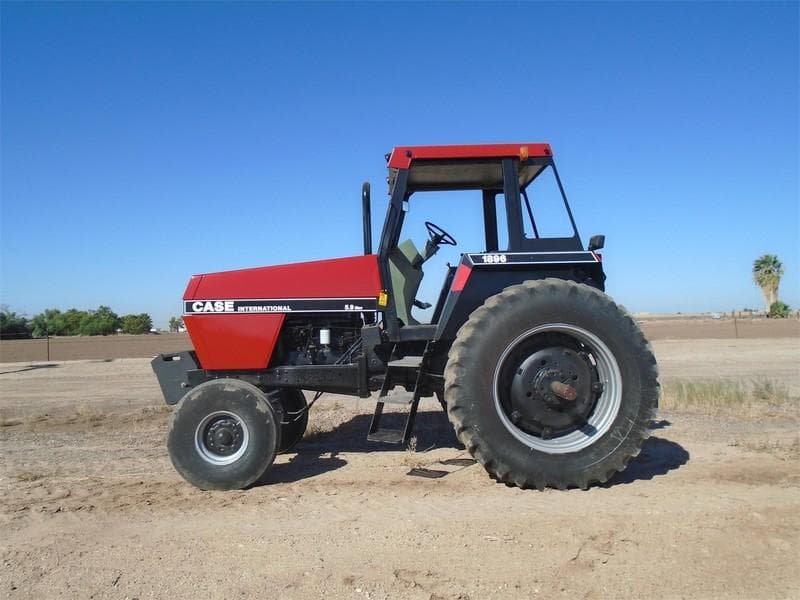

CaseIH 1896

Last Updated: June 2024

Overview

Manage demanding agricultural tasks with ease using the CaseIH 1896 model, a sturdily built row-crop tractor designed for high performance. Its powerful turbocharged diesel engine equipped with 6-cylinders, liquid cooling and a 359 ci displacement ensures a solid and reliable power output. The three-speed power shift transmission facilitates smooth and efficient shifting, with 12 forward and 3 reverse gears for optimal control during various farming operations. The tractor provides excellent maneuverability with power steering and a 2WD chassis. A comfortable operator cab, dual dry elements air cleaner, and the reliable closed center hydraulic system enhance the functionality and ease of use of this model. The tractor comes standard with agricultural tires, specifically 11.00-16 in front and 18.4-38 in the rear, promising firm and enduring traction. Its sturdy build, substantial 13,495lb operating weight, and generous 171-inch length reflect its status as an impressively robust machine.
Show more...

Key Specifications

Category: Row Crop

Transmission: Three-speed power shift

Drive Type: 2WD

Operating Weight: 13495

Fuel Type: Diesel

CaseIH 1896 vs. Similar Tractors

Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
CDC
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2100
Power Output (hp)
-

Transmission

Type
Three-speed power shift
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
171
Width (in)
-
Height (in)
118 for cab
Operating Weight (lb)
13495

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
22
Front Tire Diameter (in)
-
Front Tire Width (in)
11
Rear Tire Diameter (in)
-
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center
