CaseIH 1120

Last Updated: June 2024

Overview

The CaseIH 1120 is a 2WD or 4WD compact utility tractor from the 1100 series. This tractor was manufactured by Mitsubishi for distributor CaseIH starting in 1991. The CaseIH 1120 is equipped with a 1.1 L (64.7 cuÂ·in) three-cylinder diesel engine and has two transmissions options: a gear type transmission with 6 forward and 2 reverse gears or a hydrostatic transmission with infinite (2-range) forward and reverse gears. The tractor is equipped with power steering, mechanical drum brakes, a two-post folding ROPS, and a 20.1 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Key Specifications

Category: Utility

Power Output: 19

Transmission: Gear Type, Hydrostatic

Drive Type: 2WD, 4WD

Operating Weight: 1380 (2WD), 1477 (4WD)

Fuel Type: Diesel

Image Gallery

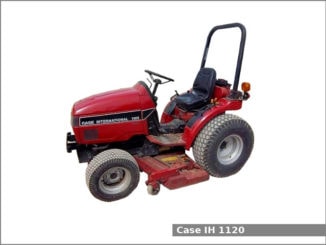

CaseIH 1120 Tractor

CaseIH 1120 vs. Similar Tractors

Power Output

Poor

Greater than 8% of similar tractors.

Hitch Capacity

Below Average

Greater than 26% of similar tractors.

Operating Weight

Average

Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 64.7
Bore (in): 2.99
Stroke (in): 3.07
Rated RPM: 2500
Power Output (hp): 19

Transmission

Type: Gear Type, Hydrostatic
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 106.3
Width (in): 46.2
Height (in): 78.7
Operating Weight (lb): 1380 (2WD), 1477 (4WD)

Power Take-Off (PTO)

PTO Type: Transmission or live (option)
PTO Speed 1 (rpm): 2000 (Middle PTO Speed)
PTO Speed 2 (rpm): 540 (Rear PTO Speed)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD, 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category I
Hitch Position: -
Hitch Capacity (lb): 1400 lbs
Operator Station Type: Two-post folding ROPS
Starter Type: Electric
Brake Type: Mechanical drum
Hydraulic System Type: Open Center
