Cabelas LM55

Last Updated: June 2024

Key Specifications

Category: Utility

Power Output: 55.1

Transmission: Synchronized shuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: Hydro cab Operating: 4415

Fuel Type: Diesel

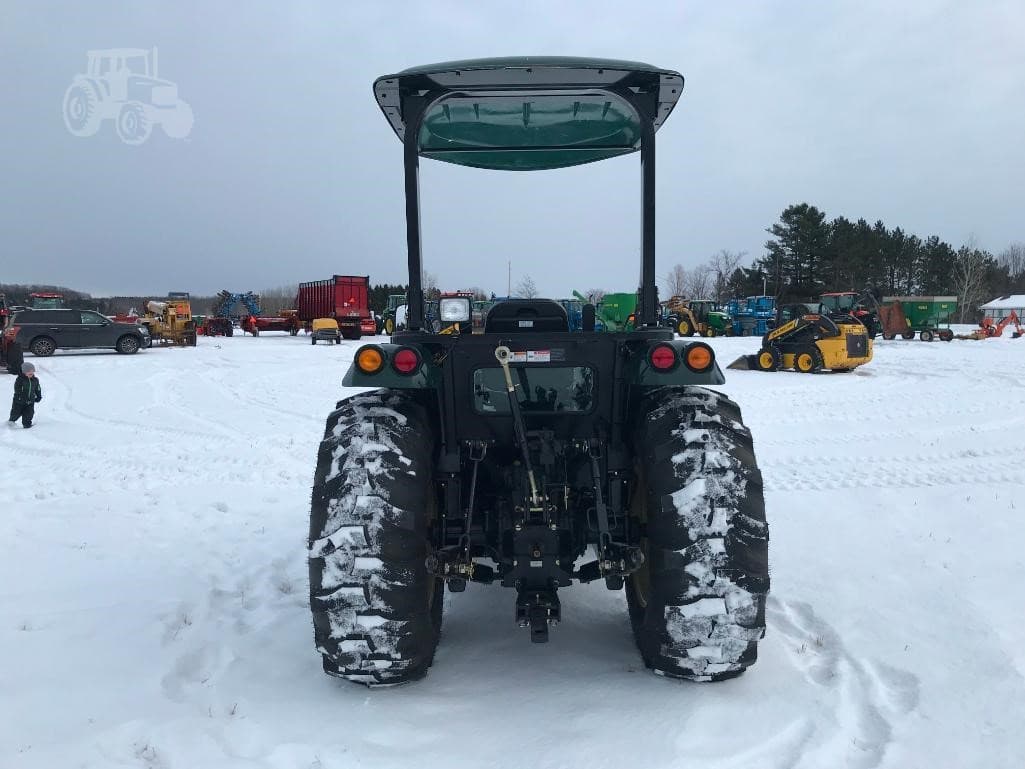

Image Gallery

Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor Cabelas LM55 Tractor

Cabelas LM55 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV86T-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
127.6
Bore (in)
3.386
Stroke (in)
3.543
Rated RPM
2800
Power Output (hp)
55.1

Transmission

Type
Synchronized shuttle / Hydrostatic
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
63.8
Height (in)
ROPS: 102.1, Cab: 99.6
Operating Weight (lb)
Hydro cab Operating: 4415

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
