Branson 5220CH

Last Updated: June 2024

Overview

The Branson 5220CH is a versatile tractor equipped with a powerful 55 hp turbocharged diesel engine from Kukje. The 4-cylinder engine is liquid-cooled, and the vehicle's power is transmitted through a hydrostatic transmission that permits infinite forward and reverse gear ranges. This tractor is built for function and durability with a weight of 4442 lbs and dimensions of 130.6 inches in length and 93 inches in height with the cab. The wheelbase measures a stable 70.9 inches, offering ample support for various farming tasks. This model rides comfortably on standard agricultural tires, with front tire and rear tire sizes of 7x16 and 12.4x24, respectively.

Key Specifications

Power Output: 55

Transmission: Hydrostatic

Operating Weight: 4442

Fuel Type: Diesel

Image Gallery

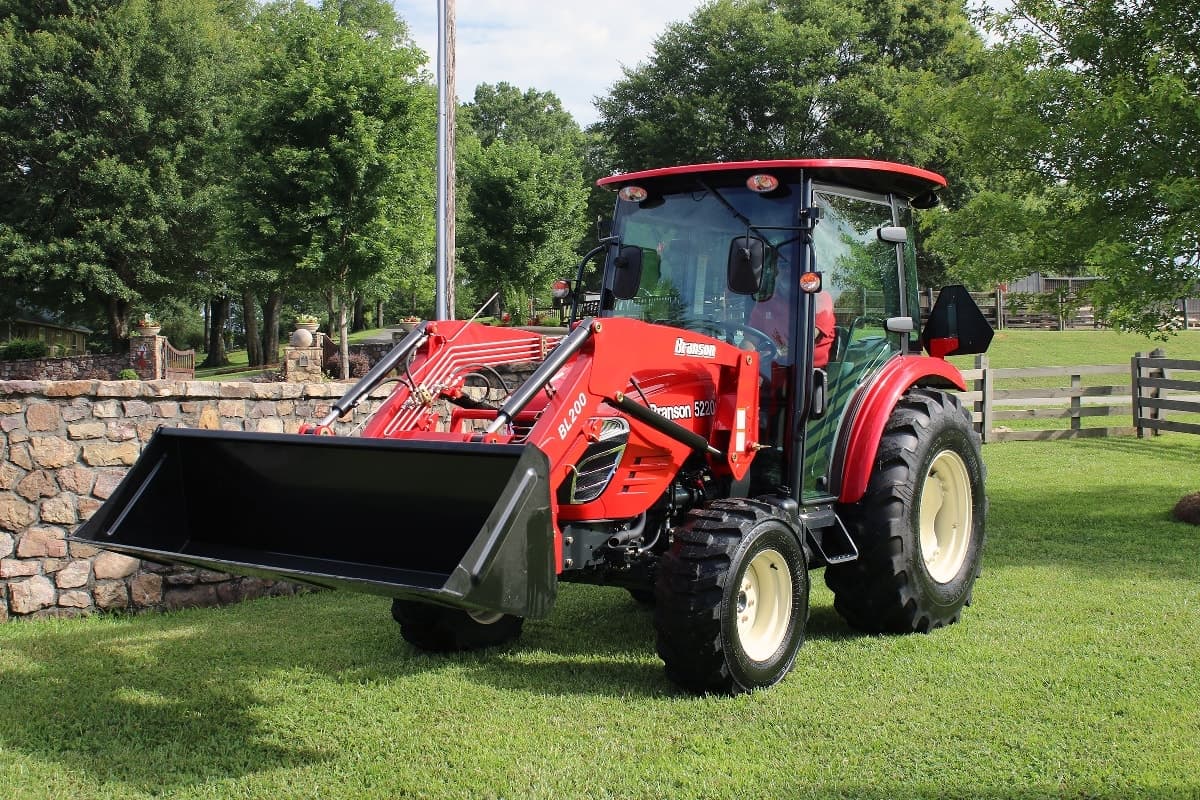

Branson 5220CH Tractor

Technical Specifications

Engine

Manufacturer: Kukje
Model: A2300T3
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 139.5
Bore (in): 3.46
Stroke (in): 3.7
Rated RPM: -
Power Output (hp): 55

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 130.6
Width (in): -
Height (in): 93 (with cab)
Operating Weight (lb): 4442

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power steering
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 7
Rear Tire Diameter (in): 24
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
