Branson 4720CH

Last Updated: June 2024

Overview

The Branson 4720CH is a robust and versatile tractor, powered by a 47 hp diesel engine manufactured by Kukje. It boasts features such as a hydrostatic transmission with infinite forward and reverse gears. The engine is liquid-cooled, with an effective dry dual-element air cleaner. The tractor is started electrically with a 12 V system. The 4720CH model uses various types of tires, including standard agricultural, lawn or turf, and industrial. The tractor measures 130.6 inches in length, and its height with the cab reaches 93 inches. The operating weight of the Branson 4720CH is 4442 lbs. The tractor is also equipped with a Type I rear hitch system.

Key Specifications

Power Output: 47

Transmission: Hydrostatic

Operating Weight: 4442

Fuel Type: Diesel

Image Gallery

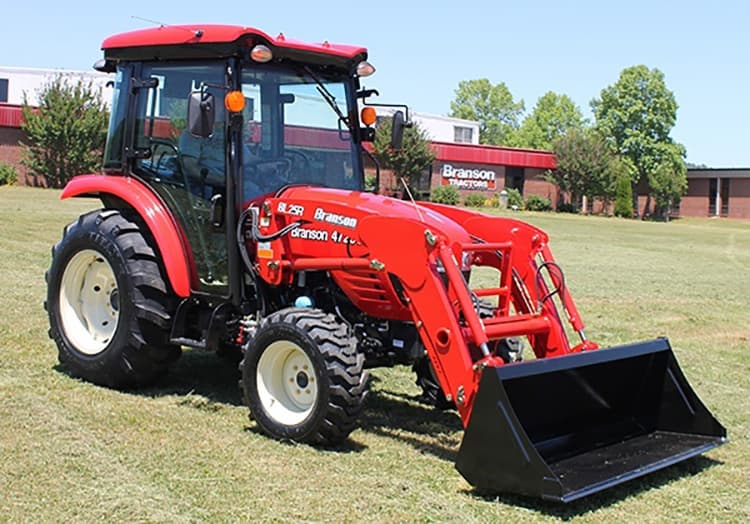

Branson 4720CH Tractor

Technical Specifications

Engine

Manufacturer: Kukje
Model: A2300N2
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspirated
Cylinders: 4
Displacement (ci): 139.5
Bore (in): 3.46
Stroke (in): 3.7
Rated RPM: -
Power Output (hp): 47

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 130.6
Width (in): Varies based on the tread, ranges from 43.6 to 60
Height (in): 93 (with cab)
Operating Weight (lb): 4442

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard ag, Lawn/turf, Industrial
Manufacture - End Year: -
Hitch Type: Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
