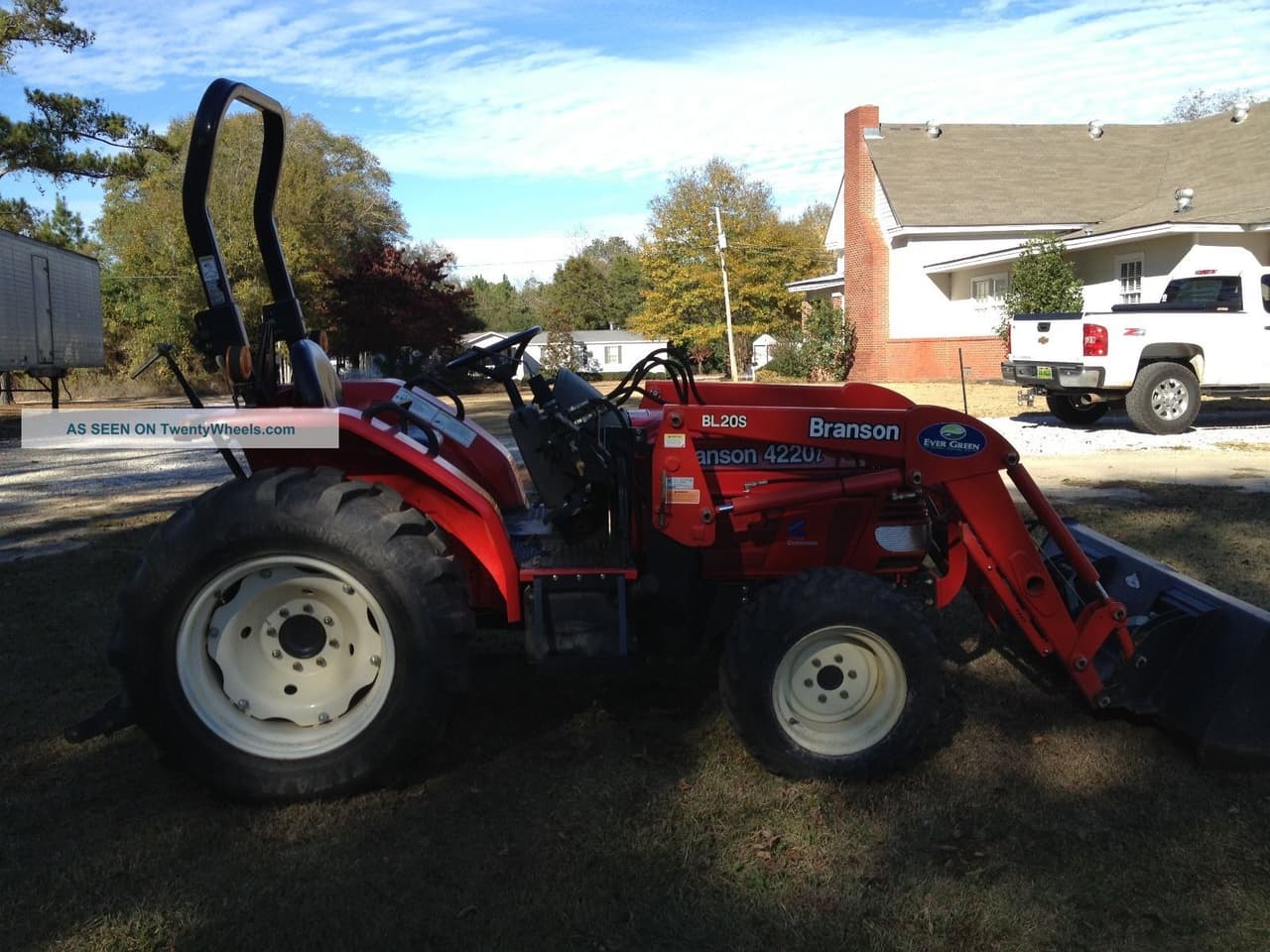

Branson 4220i

Last Updated: September 2024

Overview

The Branson 4220i is a compact but powerful tractor designed for various farming tasks. It features a 4x4 MFWD chassis with four-wheel drive, making it great for tough terrain. The tractor is steered using hydrostatic power, which makes it easy to control. It has a synchronized shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different jobs.

Under the hood, the 4220i has a Kukje A2000N2 engine. This diesel engine is liquid-cooled and has four cylinders. It can produce 42 horsepower at 2600 RPM, which is plenty for most farm work. The tractor measures 124 inches long, 56 inches wide, and 97 inches tall. It weighs 4087 pounds, making it sturdy but not too heavy. The three-point hitch can lift up to 2580 pounds, which is good for attaching various tools. Some nice extras include a dry dual element air cleaner, and you can add a block heater if you need one.
Show more...

Key Specifications

Power Output: 42 hp (31.3 kW)

Transmission: Synchronized shuttle

Drive Type: 4WD

Operating Weight: 4087 lb (1854 kg)

Fuel Type: Diesel

Branson 4220i vs. Similar Tractors

Power Output

The Power Output for the Branson 4220i is Average. It is greater than 34% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Branson 4220i is Average. It is greater than 35% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Branson 4220i is Below Average. It is greater than 29% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Branson 4220i is Above Average. It is greater than 80% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kukje
Model
A2000N2
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement
127 ci (2.1 L)
Bore
3.30 in (83.8 mm)
Stroke
3.70 in (94.0 mm)
Rated RPM
2600
Power Output
42 hp (31.3 kW)

Transmission

Type
Synchronized shuttle
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
