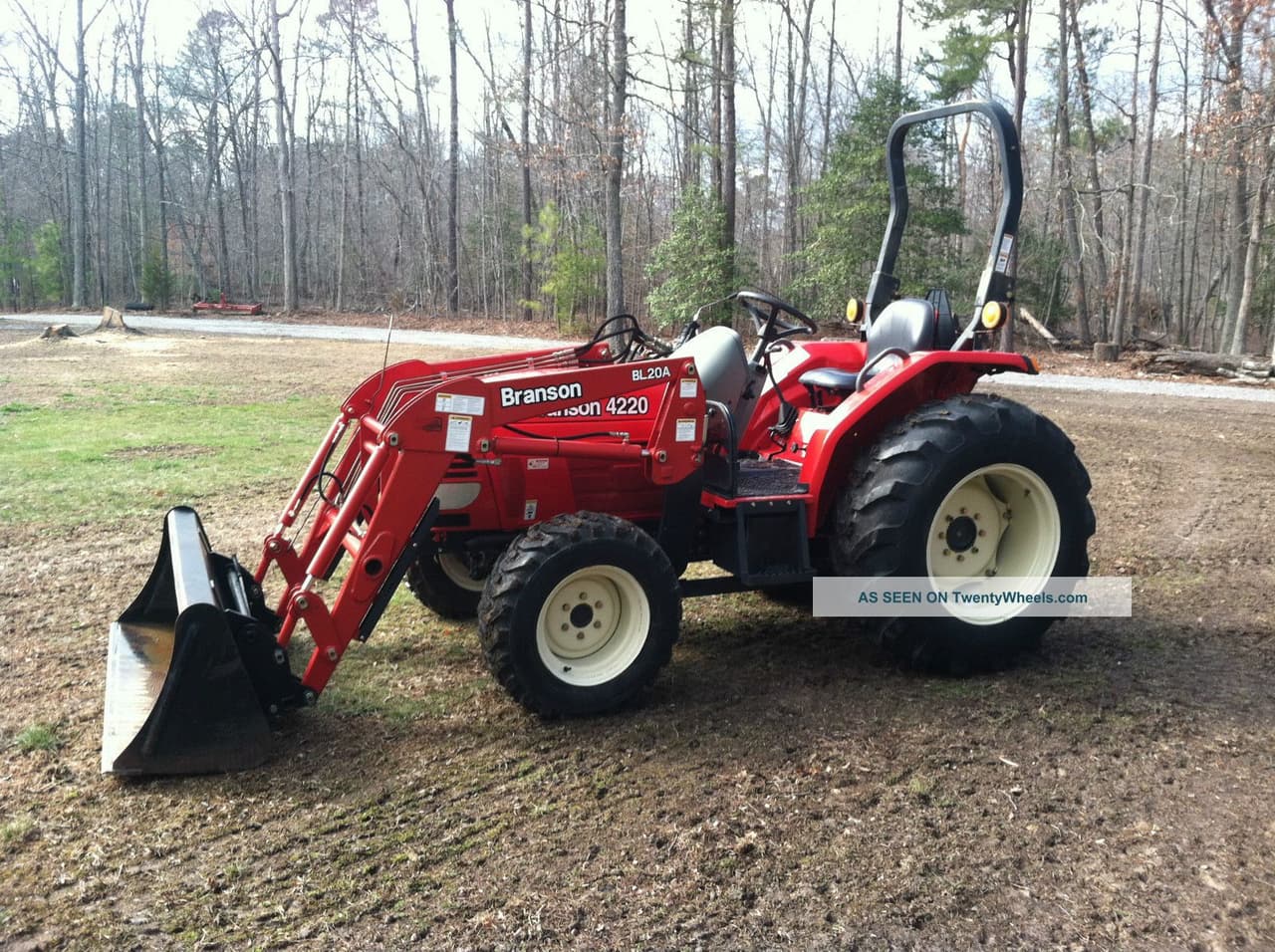

Branson 4220

Last Updated: June 2024

Overview

The Branson 4220 is a reliable compact utility tractor from Branson, renowned for its long-lasting engine, strong structure, and dynamic capability. It is powered by a 42-horsepower diesel engine from Kukje featuring four cylinders. Its liquid cooling system extends the lifespan of the tractor by maintaining the proper operating temperature, which, paired with the dry element air cleaner, ensures proficient and smooth functioning in different environments. The chassis design is 4x4 MFWD 4WD, enabling it to confront diverse terrains and heavy-duty tasks without compromising its power and strength. It's equipped with a hydrostatic power steering for easy maneuvering and a 12-speed synchromesh transmission for versatile operation. Equipped with an open center hydraulic system and a rear Category I hitch, the Branson 4220 proves to be indispensable for a wide array of tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 42

Transmission: Synchromesh

Drive Type: 4WD

Operating Weight: 3795

Fuel Type: Diesel

Branson 4220 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kukje
Model
A2000N2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
127
Bore (in)
3.307
Stroke (in)
3.701
Rated RPM
2600
Power Output (hp)
42

Transmission

Type
Synchromesh
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
127
Width (in)
61
Height (in)
88
Operating Weight (lb)
3795

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
9.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
