Branson 3820i

Last Updated: June 2024

Overview

The Branson 3820i is a 4WD tractor with hydrostatic power steering. It features a 4 cylinder, 38 horsepower diesel engine and liquid cooling system. The 3820i model has a 12-speed synchronized shuttle transmission, with both 12 forward and reverse gears. This allows for ease of operation and comfort for the driver. With a width of 56 inches and a height of 97 inches, this tractor is sizeable yet manageable for a variety of tasks. The tractor has a solid operating weight of 4087 lbs with a notable hitch lift capacity of 2580 lbs. The electric starter ensures a reliable and quick start.

Key Specifications

Power Output: 38

Transmission: 12-speed synchronized shuttle

Drive Type: 4WD

Operating Weight: 4087

Fuel Type: Diesel

Lift Capacity: 2580 lbs

Image Gallery

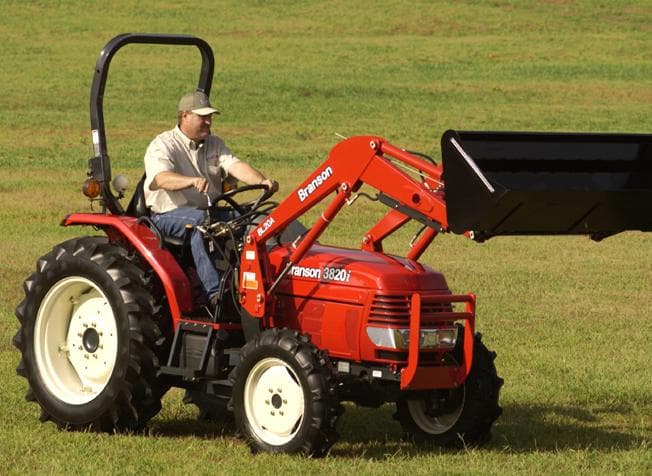

Branson 3820i Tractor

Technical Specifications

Engine

Manufacturer: -
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 127.2
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 38

Transmission

Type: 12-speed synchronized shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 124
Width (in): 56
Height (in): 97
Operating Weight (lb): 4087

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Cati I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 2580 lbs
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
