Branson 3725R

Last Updated: June 2024

Overview

The Branson 3725R is a compact utility tractor, a range manufactured by Branson (a part of Kukje). It is designed with a 4x4 MFWD 4WD chassis and powered by a 4-cylinder diesel engine from Kukje, model A2000N3-UTR4. The engine features liquid cooling and produces power at a rated 2600 RPM. The transmission is a 12-speed shuttle, indicating a high level of control and numerous options for speed manipulation. It offers both standard and industrial tire options, alongside power steering, promising an ergonomic and comfortable user experience. The tractor dimensions are 129 inches in length, 60.2 inches in width, and 96 inches in height. With an operating weight of 4113 lbs, it is a heavyweight machine designed for substantial workloads. The tractor also comes with a ROPS operator station type and an electric starter.

Key Specifications

Category: Utility

Transmission: 12-Speed Shuttle

Drive Type: MFWD 4WD

Operating Weight: 4113

Fuel Type: Diesel

Image Gallery

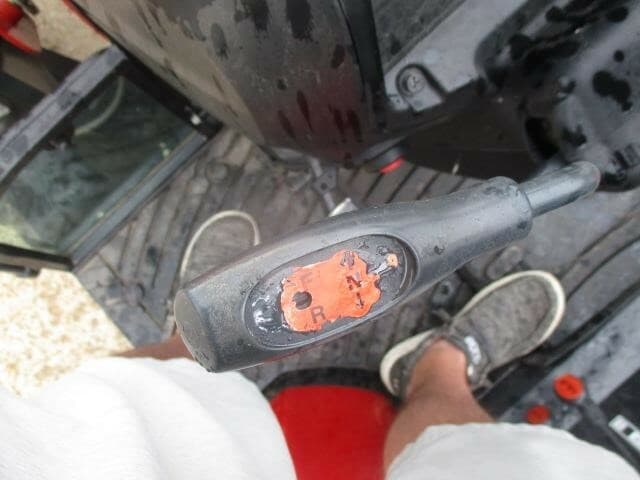

Branson 3725R Tractor

Branson 3725R vs. Similar Tractors

Operating Weight

Average

Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kukje
Model: A2000N3-UTR4
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 127.2
Bore (in): 3.31
Stroke (in): 3.7
Rated RPM: 2600
Power Output (hp): -

Transmission

Type: 12-Speed Shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 96
Operating Weight (lb): 4113

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): 6.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (Front: 9.5x16. Rear: 12.4x28), Industrial (Front: 10x16.5-6, Rear: 420/70x24-6)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
