Branson 3520R

Last Updated: June 2024

Overview

The Branson 3520R tractor model is equipped with a 35 horsepower diesel engine that has a rated RPM of 2600. It utilizes a unique syncro shuttle transmission system with 12 forward and reverse gears. This model also features hydrostatic power steering and a Type I hitch. The engine, which is designed by Kukje, employs a liquid cooling system and is capable of operating with a 3-cylinder, 6-valve configuration. The tractor has a weight of 4053 lbs and overall dimensions of 130 inches in length, 64 inches in width, and 97.9 inches in height. The tractor parks on various tire types depending on the application, including agricultural, lawn/turf, and industrial tires.

Key Specifications

Power Output: 35

Transmission: Syncro shuttle

Operating Weight: 4053

Fuel Type: Diesel

Image Gallery

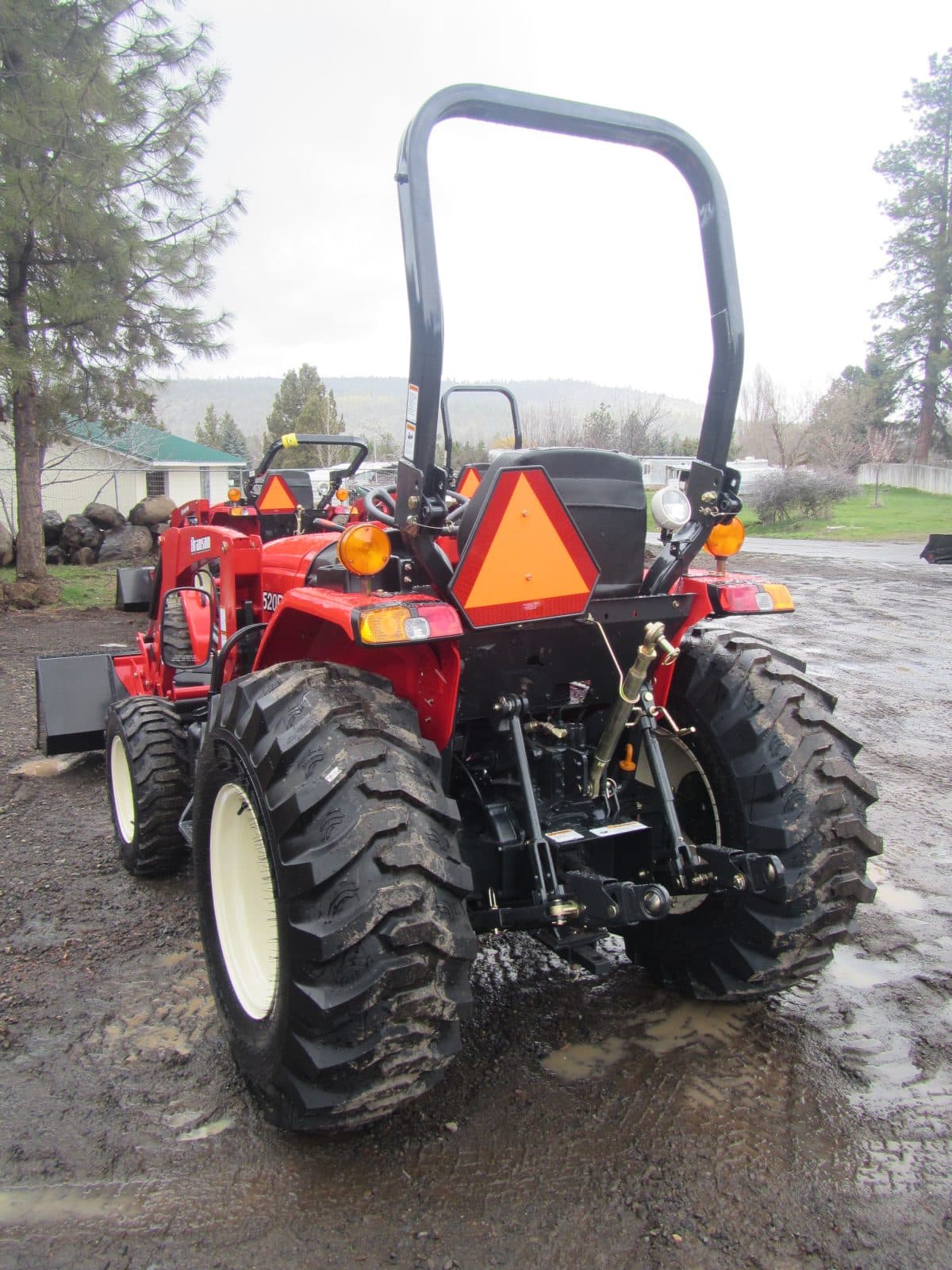

Branson 3520R Tractor

Technical Specifications

Engine

Manufacturer: Kukje
Model: A1700N2-R
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 6-valve
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 104.6
Bore (in): 3.465
Stroke (in): 3.701
Rated RPM: 2600
Power Output (hp): 35

Transmission

Type: Syncro shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 130
Width (in): 64
Height (in): 97.9
Operating Weight (lb): 4053

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 9.5
Rear Tire Diameter (in): -
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Various (Ag, Lawn/Turf, Industrial)
Manufacture - End Year: -
Hitch Type: Type I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
