Branson 3520H

Last Updated: June 2024

Overview

The Branson 3520H is a compact utility tractor, provided with a Kukje A1700N2, three-cylinder diesel engine. With its natural aspirated, liquid-cooled inline engine, the tractor delivers a power output of 35 hp at a rated RPM of 2600. The MFWD 4WD makes it highly maneuverable, while the hydrostatic transmission ensures smooth gear changes with infinite forward and reverse gears. It offers a two-post foldable ROPS operator station, power steering and a durable agricultural, lawn/turf, and industrial tire type. This tractor is still in production since its manufacturing started in 2014.

Key Specifications

Category: Utility

Power Output: 35

Transmission: Hydrostatic (Infinite forward and reverse gears)

Drive Type: MFWD 4WD

Operating Weight: 4,060

Fuel Type: Diesel

Image Gallery

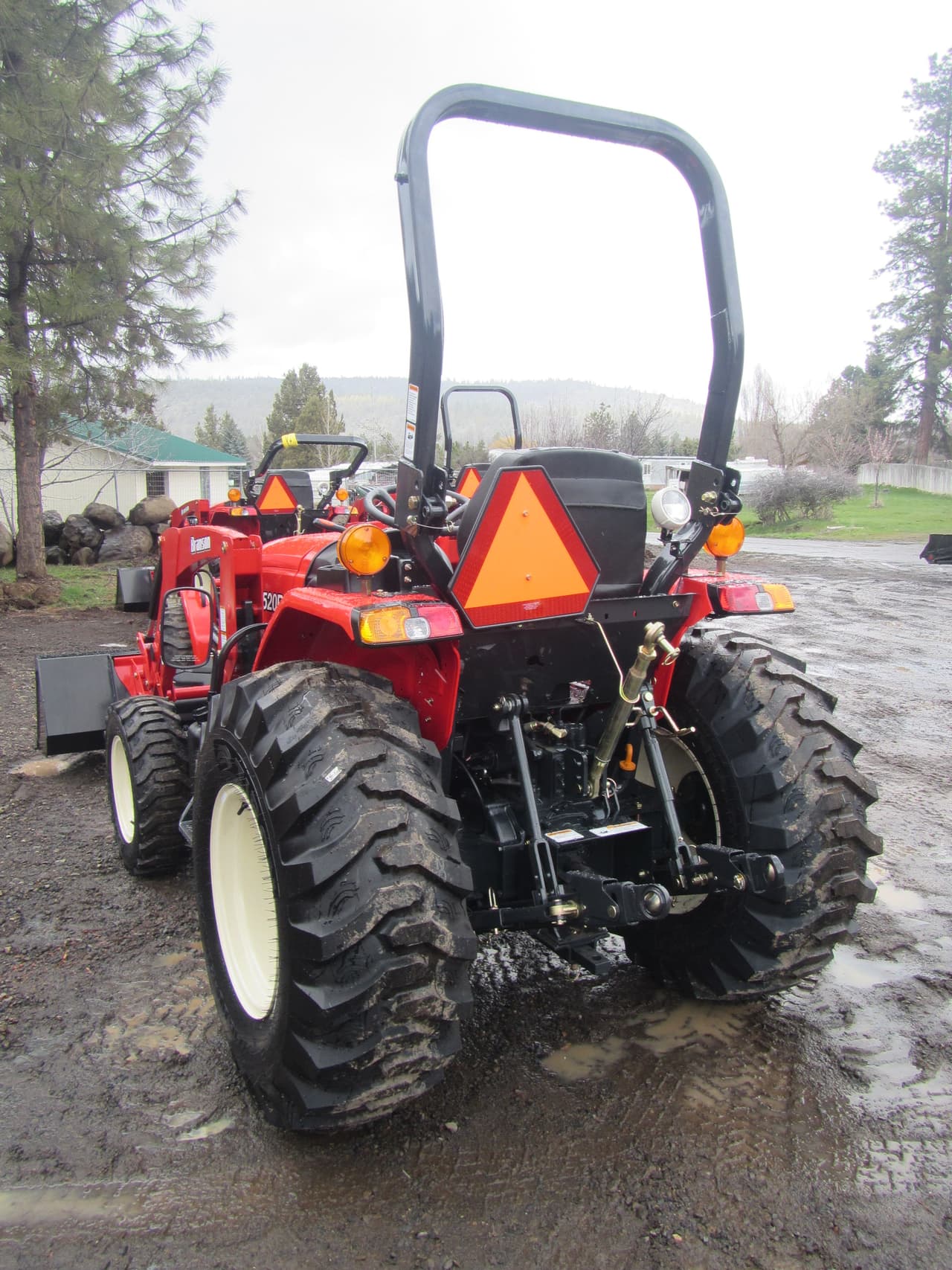

Branson 3520H Tractor

Branson 3520H vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Hitch Capacity

Poor

Greater than 8% of similar tractors.

Operating Weight

Poor

Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kukje
Model: A1700N2
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 104.6
Bore (in): 3.465
Stroke (in): 3.701
Rated RPM: 2600
Power Output (hp): 35

Transmission

Type: Hydrostatic (Infinite forward and reverse gears)
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 129.9
Width (in): 63.8
Height (in): 97.6
Operating Weight (lb): 4,060

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 790
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural, Lawn/Turf, Industrial
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 3,310 lbs
Operator Station Type: Two-post foldable ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
