Branson 3510i

Last Updated: June 2024

Overview

The Branson 3510i is a durable and powerful tractor manufactured by Kukje. It boasts a synchronized shuttle type transmission with 12 forward and 12 reverse gears, allowing for a smooth and versatile operation. This model houses a 3-cylinder, liquid-cooled naturally aspirated diesel engine with an engine displacement of 104.6 ci built to deliver a power output of 35 hp. The tractor's length, width, and height are 119 inches, 55 inches, and 95 inches, respectively, with an operating weight of 3756 lbs. Notably, the 3510i features a Cat I hitch type with a lift capacity of 2140 lbs at 24 inches. Its additional features include a dry element air cleaner and block heater for pre-heating.
Show more...

Key Specifications

Power Output: 35

Transmission: synchronized shuttle

Operating Weight: 3756

Fuel Type: diesel

Lift Capacity: 2140 lbs @ 24 inches

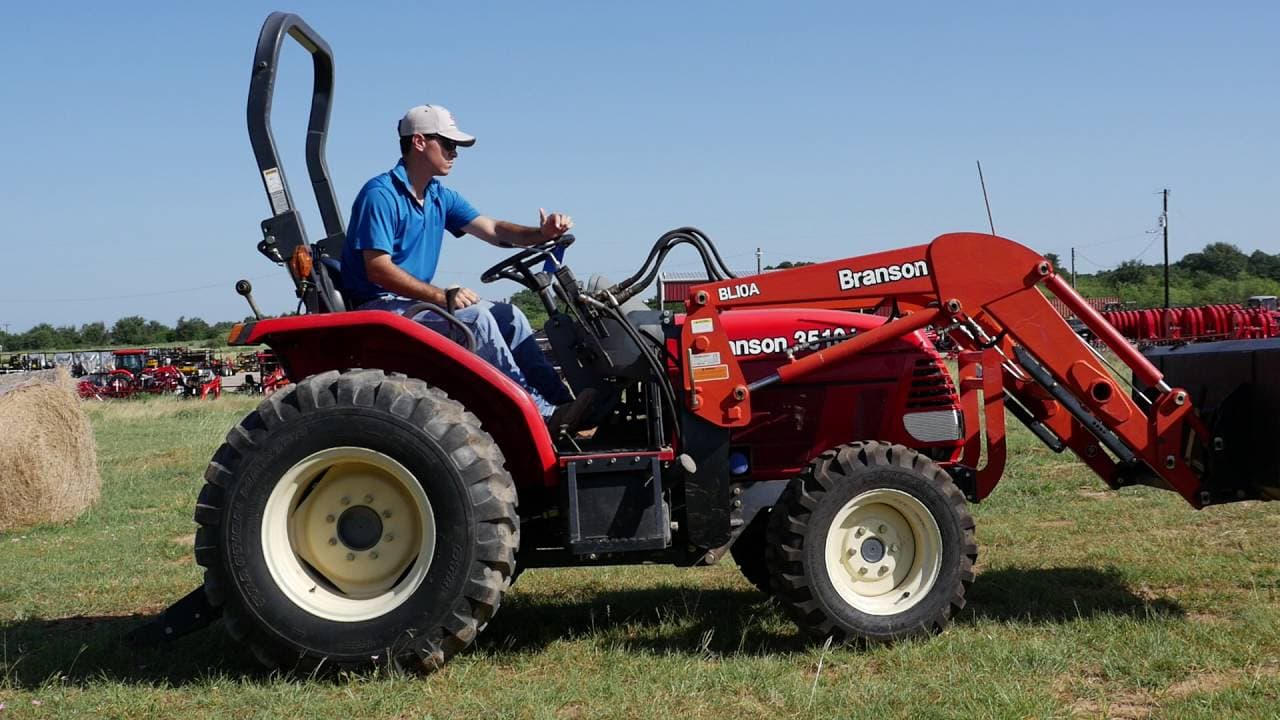

Image Gallery

Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor Branson 3510i Tractor

Technical Specifications

Engine

Manufacturer
Kukje
Model
A1700
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
naturally aspirated
Cylinders
3
Displacement (ci)
104.6
Bore (in)
3.46
Stroke (in)
3.7
Rated RPM
2600
Power Output (hp)
35

Transmission

Type
synchronized shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
119
Width (in)
55
Height (in)
95
Operating Weight (lb)
3756

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
2140 lbs @ 24 inches
Operator Station Type
ROPS (Rollover protection structure)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
