Branson 3510h

Last Updated: June 2024

Overview

The Branson 3510h is a utility tractor manufactured by Branson, a division of Kukje. It boasts a powerful Kukje A1700 35 hp diesel engine with three cylinders and a liquid cooling system. The fuel-efficient engine operates at a max rated RPM of 2600. The tractor has a hydrostatic transmission with infinite gears in a 3-range setup. With 4WD drive type, it ensures adequate traction in challenging terrain. The tractor has an operating weight of 3478 lbs and dimensions of 122 inches in length, 55.2 inches in width, and a height of 93.4 inches. Despite the data deficiencies, the available specifications point towards a reliable and durable tractor suited for various farming tasks.

Key Specifications

Category: Utility

Power Output: 35

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3478

Fuel Type: Diesel

Image Gallery

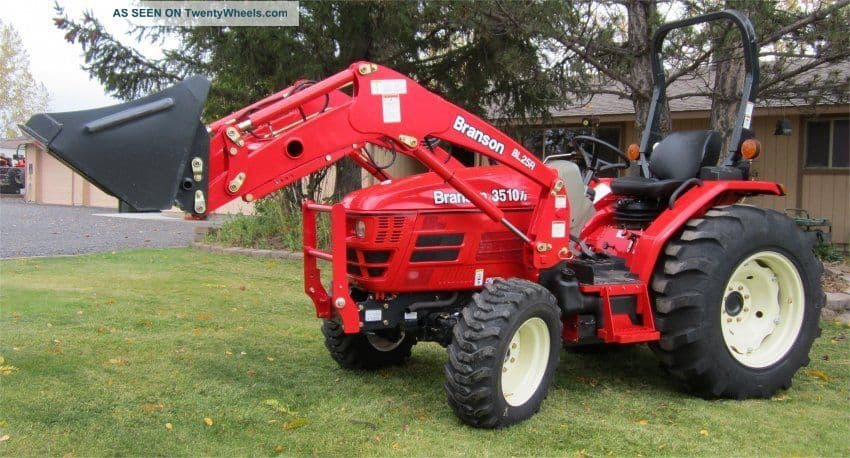

Branson 3510h Tractor

Branson 3510h vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Operating Weight

Below Average

Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kukje
Model: A1700
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 104.6
Bore (in): 3.46
Stroke (in): 3.7
Rated RPM: 2600
Power Output (hp): 35

Transmission

Type: Hydrostatic
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 122
Width (in): 55.2
Height (in): 93.4
Operating Weight (lb): 3478

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear - Type I
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
