Branson 3110i

Last Updated: June 2024

Overview

The Branson 3110i is a versatile and resilient tractor suited for a variety of applications. The tractor is built on a sturdy 4x4 MFWD 4WD chassis and is equipped with a reliable 3-cylinder Kukje diesel engine. The powerful 31 hp engine working at 2600 RPM ensures optimal performance in various conditions. Moreover, the hydrostatic power steering system ensures ease of handling. The tractor measures 119 inches in length, 55 inches in width, and 95 inches in height, and it boasts an operating weight of 3,735 lbs. The power of this tractor is managed through a 12-speed synchronized shuttle transmission. The tractor also features a Rear Type I hitch and a ground clearance of 11 inches, delivering great utility for many tasks.

Key Specifications

Power Output: 31

Transmission: Synchronized Shuttle

Drive Type: 4WD

Operating Weight: 3735

Fuel Type: Diesel

Image Gallery

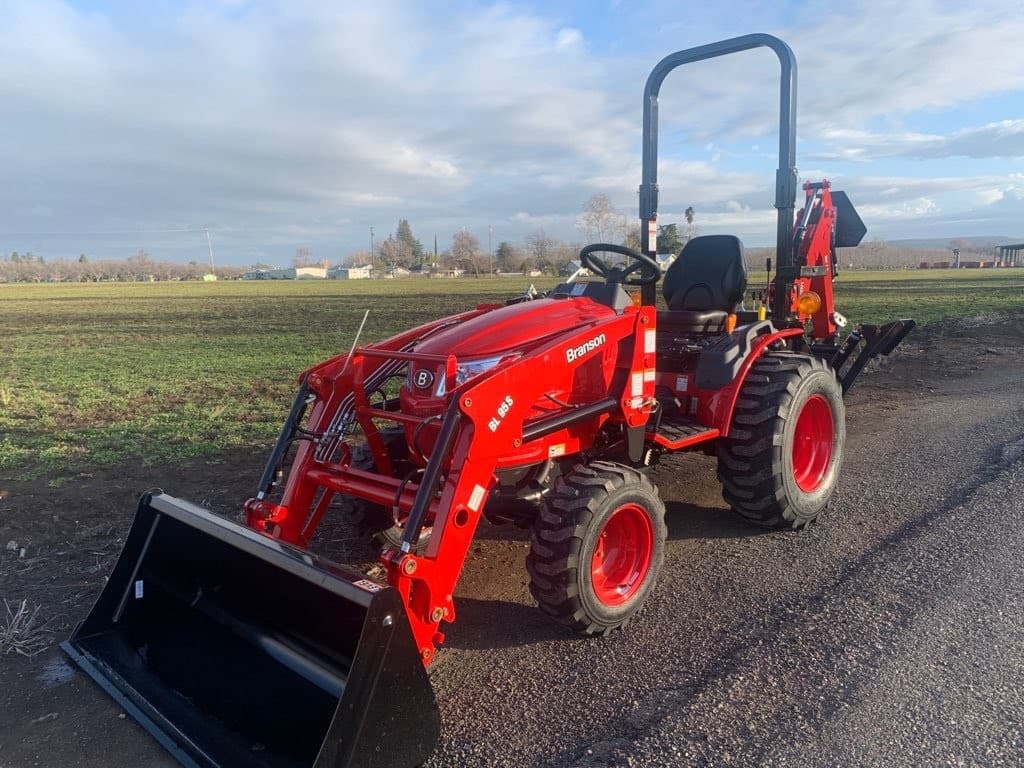

Branson 3110i Tractor

Technical Specifications

Engine

Manufacturer: Kukje
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 95.32
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 31

Transmission

Type: Synchronized Shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 119
Width (in): 55
Height (in): 95
Operating Weight (lb): 3735

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
